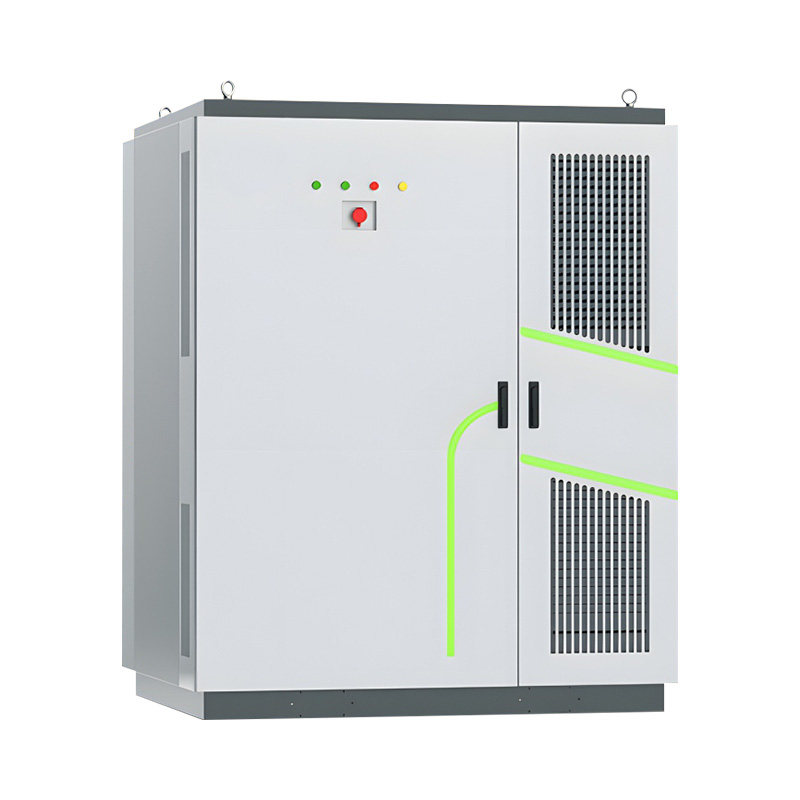

215KWH Air Cooling BESS
Product Features
Efficient Air-Cooling System
These energy storage cabinets use an air-cooling system to maintain optimal temperatures for the battery modules. This cooling method is cost- effective, requires minimal maintenance, and is suitable for most industrial and commercial environments with moderate climate control needs.
Enhanced Durability and Environmental Resistance
Built with durable materials and designed to protect internal components, air-cooled storage cabinets are resistant to dust and moisture, ensuring reliable performance even in challenging industrial environments. Many models include IP-rated enclosures for added protection.
High Capacity and Reliable Power Supply
Air-cooled storage cabinets provide substantial energy capacity, making them ideal for applications that require consistent, high-power output. They support energy-intensive operations, peak load management, and backup power in case of grid instability.
Smart Monitoring and Safety Features
These systems are equipped with advanced monitoring technology that tracks key metrics like temperature, voltage, and charge levels in real-time. Safety features, such as overvoltage, overcurrent, and temperature controls, enhance operational safety and extend the battery lifecycle by preventing overheating and other potential hazards.
Technical Specification for 2 hours Backup (0.5C)
| Model | 100kW 197kWh |
100kW 215kWh |
100kW 232kWh |
125kW 252kWh |
125kW 261kWh |
| DC (Battery) | LiFePO4 Lithium Iron Phosphate | ||||
| Cells Type | 3.2V280Ah | 3.2V280Ah | 3.2V280Ah | 3.2V304Ah | 3.2V314Ah |
| Cell specification | 220S1P | 240S1P | 260S1P | 260S1P | 260S1P |
| Configuration of Battery | 197kWh | 215kWh | 232kWh | 252kWh | 261kWh |
| Battery Capacity | 100KW | 100KW | 100KW | 100KW | 100KW |
| Max. Power | 140A | 154A | 157A | 152A | 157A |
| Max. Current | 704V | 768V | 768V | 832V | 832V |
| Battery Rated Voltage | 616V-792V | 672V-864V | 672V-864V | 728V-936V | 728V-936V |
| Battery Voltage Range | AC (On/Off Grid) | ||||
| Max. Power(kVA) | 110KVA | 110KVA | 110KVA | 137KVA | 125KVA |
| Active Power(kW) | 100KW | 100KW | 100KW | 100KW | 100KW |
| Rated Voltage(V) | 400V | 400V | 400V | 400V | 400V |
| Rated Current(A) | 144A | 144A | 144A | 180A | 180A |
| Voltage Range | 320V-460V | ||||
| Rated Frequency | 50/60Hz | ||||
| Range of Frequency | 45-55/55-65Hz | ||||
| THDI | <3% | ||||
| Power factor | 1.0 (Adjustable from 0.8 leading to 0.8 lagging) | ||||
| AC System | 3 phase 4 wires | ||||
| Overload capability | 110% | ||||
| Solar Side (PV) | |||||
| Max. Power | Optional | ||||
| Max. Power | 100KW (50KW*2) | ||||
| High Volage side Voltage | 560V-1000V | ||||
| High Voltage side Current | 160A | ||||
| Low Voltage side Voltage | 500V-900V | ||||
| Low Voltage side Current | 200A | ||||
| Uninterrupted Load (STS) | Optional | ||||
| STS Power | 200KW | ||||
| STS Voltage | 400V 50HZ/60HZ | ||||
| Overload Power | 110% | ||||
| Shift Time | <20ms | ||||
| System operation strategy | Anti Backflow and Black Start | ||||
| Functional | Power peak shaving and valley filling, electricity price peak valley arbitrage, photovoltaic priority for electricity cost savings, wind power generation priority for electricity cost savings, off grid power supply for remote areas | ||||
| Operation Mode Selections | Photovoltaic and diesel storage project, Wind power and diesel storage project, Wind and photovoltaic diesel storage project, Charging Station + Energy storage project, On-grid electricity selling project | ||||
| Specification | |||||
| Cabinet Size (W * D * H) | 1696*1408*2055mm | ||||
| Weight | ≤2.7T | ||||
| Max. cycle efficiency | >90% | ||||
| Protection | IP55 | ||||
| Auxiliary Power Supply | Self-powered, Externally powered | ||||
| Corrosion resistance rating | C3/C5 | ||||
| Operating Humidity Range | 0%-100% (Non-condensing) | ||||
| Operating Temperature Range | -30°C-50°C (>45°C derating) | ||||
| Max. Operation Altitude | 2000m | ||||
| Battery cabinet cooling method | Intelligent Air Cooling | ||||
| Fire safety configuration | Smoke detector, Heat detector, Gas-based fire extinguishing system, Pressure relief valve, Pack-level fire protection, Cluster-level fire protection, Water-based fire protection, Automatic pressure relief | ||||
| Communication | Ethernet, 485, CAN | ||||
| Communication Protocol | Modbus TCP | ||||
| Note: Some spare parts are available. For details, please consult with our sales for further communication. | |||||
