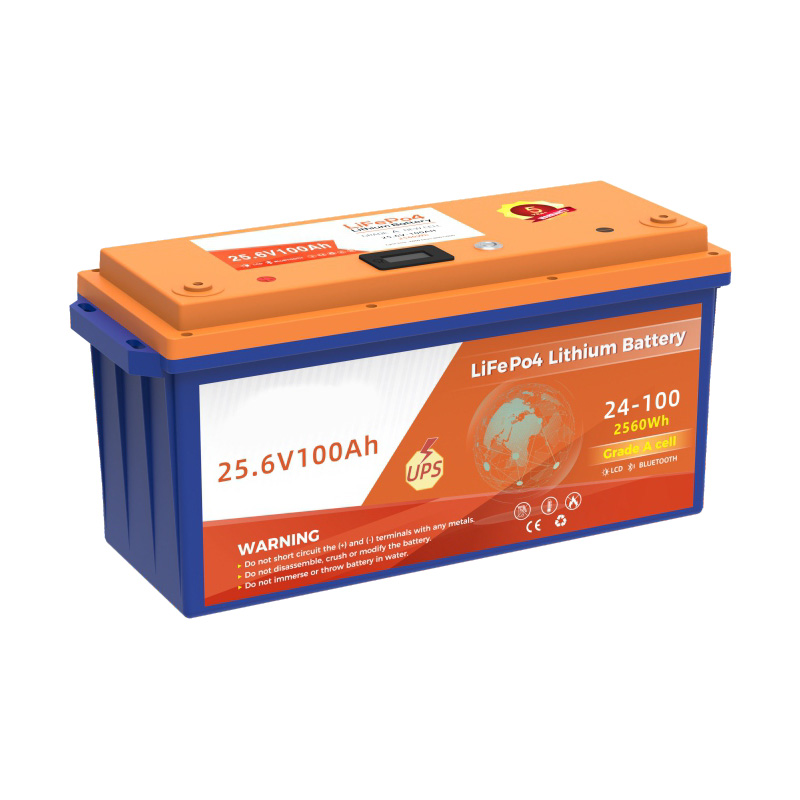

25.6V LiFePO4 Plastic Case Series
Features
- Enhanced Energy Density and Longer Lifespan
- Improved Efficiency and Faster Charging
- Reduced Weight and Space Requirements
- Lower Environmental Impact and Safer Operation
Specification
| Model | YY25100S | YY25150S | YY25200S | YY25230S | YY25300S | YY25460S |
| Cell | 8 | 8 | 8 | 8 | 8 | 16 |
| Nominal Voltage(V) | 25.6V | 25.6V | 25.6V | 25.6V | 25.6V | 25.6V |
| Nominal capacity(Ah) | 100Ah | 150Ah | 200Ah | 230Ah | 300Ah | 460Ah |
| Energy(kWh) | 2.56kWh | 3.84kWh | 5.12kWh | 5.888kWh | 7.68kWh | 11.776kWh |
| Cycle Life | ≥6000 cycles@80%DOD/0.5C/25°C | |||||
| Operating temperature | Charge:0~55°C Discharge:-10~55°C | |||||
| Protection | Electronic circuit breaker, BMS voltage protection, current limiting | |||||
| Water dust resistance | Ip65 | |||||
| Net Weight(kg) | 11.5kg | 31.4kg | 37.9kg | 40kg | 46.2kg | 59.5kg |
| Dimension(mm) | 330*170*215 | 523*229*218 | 523*229*218 | 523*229*218 | 640*245*220 | 670*250*220 |
| Warranty | 5 years | |||||
| Certifications | CE,UN38.3,MSDS | |||||
