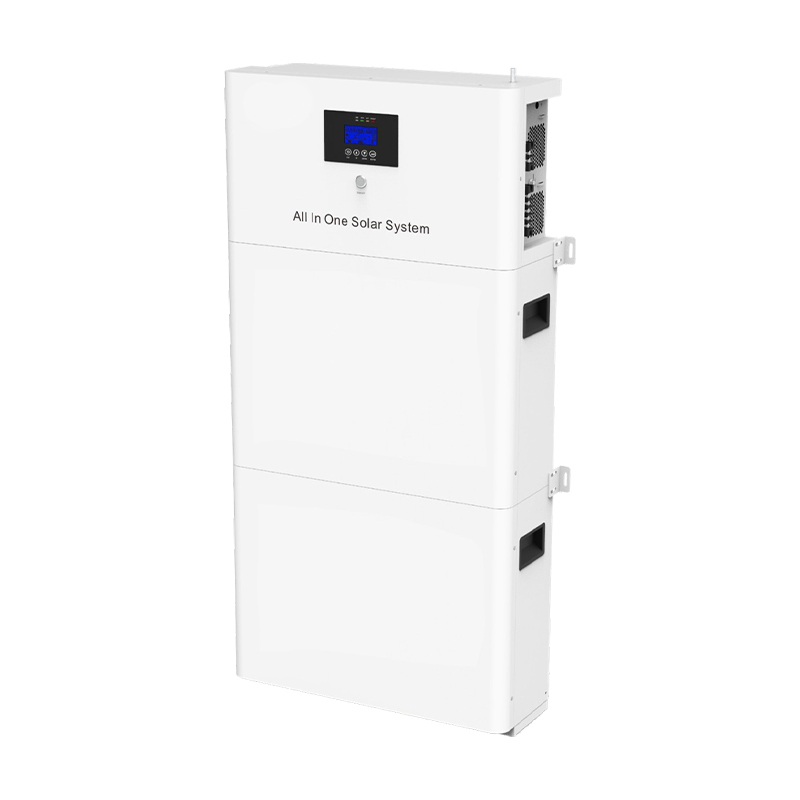

3000W~5000W All in One Solar System
- High energy density, Long cycle life.
- Certain energies are high, Good safety performance.
- Rapid charge and discharge, Low self-discharge rate.
- Parallel connection up to 15, Large capacity, long life.
- Can be wall hanging, can be stacked.
- Excellent high and low temperature performance.
Features
- High energy density, Long cycle life.
- Certain energies are high, Good safety performance.
- Rapid charge and discharge, Low self-discharge rate.
- Parallel connection up to 15, Large capacity, long life.
- Can be wall hanging, can be stacked.
- Excellent high and low temperature performance.
Specification
| Model | GYSWT-3KW | GYSWT-5KW |
| Rated Power | 3000VA/3000W | 5000VA/5000W |
| INPUT | ||
| Voltage | 230 Vac | |
| Selectable Voltage Range | 170 – 280 Vac ( For Personal Computer ); 90 – 280 Vac ( For Home Appliances ) | |
| Frequency Range | 50/60 Hz ( Auto Sensing ) | |
| OUTPUT | ||
| AC Voltage Regulation (Batt. Mode) | ±5% | |
| Surge Power | 6000VA | 10000VA |
| Efficiency (Peak) | up to 93.5% | |
| Transfer Time | 10 ms (For Personal Computers) ; 20 ms (For Home Appliances) | |
| Waveform | Pure sine wave | |
| BATTERY | ||
| Battery Voltage | 24VDC | 48VDC |
| Floating Charge Voltage | 27VDC | 54VDC |
| Overcharge Protection | 33VDC | 63VDC |
| SOLAR CHARGER & AC CHARGER | ||
| Maximum PV Array Open Circuit Voltage | 150VDC | 500VDC |
| Maximum PV Array Power | 2500W | 5000W |
| MPPT Range @ Operating Voltage | 40-150VDC | 120-450VDC |
| Maximum Solar Charge Current | 100A | 100A |
| Maximum AC Charge Current | 80A | 80A |
| Maximum Charge Current | 100A | 100A |
| PHYSICAL | ||
| Dimension, D*W*H(mm) | 860*515*150 | |
| Net Weight (kgs) | 60 | |
| Communication Interface | USB/RS232 | |
| ENVIRONMENT | ||
| Humidity | 5% to 95% Relative Humidity (Non-condensing) | |
| Operating Temperature | -10°C to 50°C | |
| Storage Temperature | -15°C to 60°C | |
| LITHIUM BATTERY | ||
| Batteries materials | Lithium iron phosphate | |
| Series parallel mode(s series, P parallel) | 16S1P | |
| Nominal voltage | 51.2V | |
| Nominal capacity | 100Ah | |
| Color | Optional | |
| Charging way | CP/VP | |
| Charging current | 0.2C(standard) | |
| Maximum charging current | Max 0.5C@25°C | |
| Charge cut-off voltage | 58.4V/CELL | |
| Discharge way | CP/VP | |
| Discharge current | 1C | |
| Maximum discharge current | Max 1C@25°C | |
| Discharge cut-off voltage | 44.8V | |
| Display | LCD | |
| Charging operating temperature | Charging:0~+50°C | |
| Discharge operating temperature | Discharge:-20~+55°C | |
Product specifications are subject to change without prior notice.
