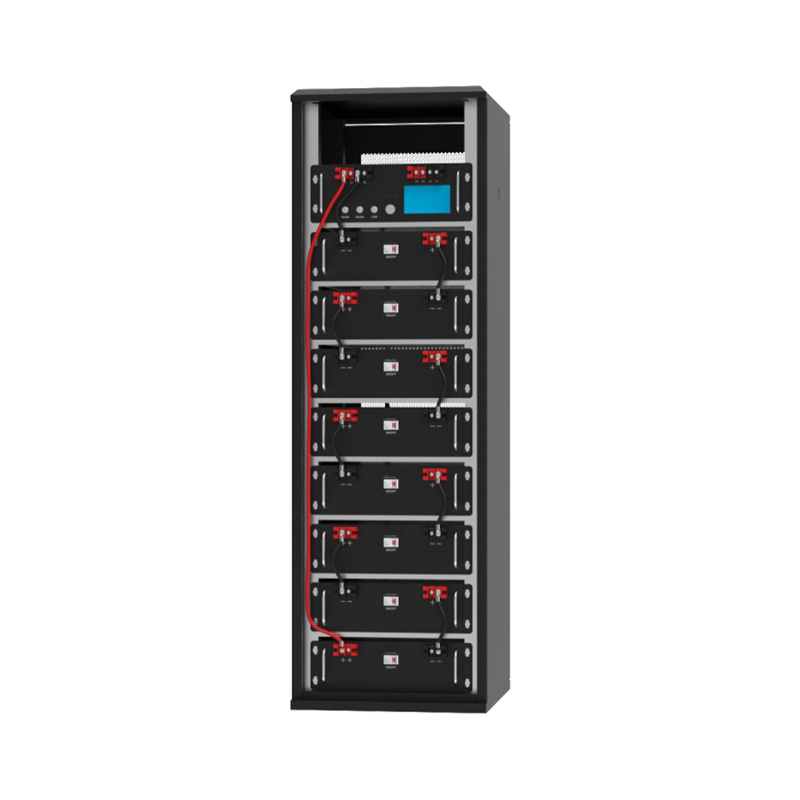

384V High Voltage Cabinet Energy Storage Series
Features
- High-voltage Efficiency:Supports high-voltage DCoutput(e.g.,200V~600V), reducing transmission loss and improving system efficiency by 5%~10%.
- Industrial integration:19-inch rack standard,scalable parallel connection for data centers or commercial use.
- High Power Density: Delivers 20kWh~100kWh per rack, maximizing space utilization.
- Advanced Safety:Multi-layer BMS protection (over-voltage/current/isolation)+forced air cooling for high-voltage stability.
- Enterprise Management:Compatible with SNMP/Modbus for EMS integration and remote monitoring.
Specification
| Model | YY358280HVR | YY358300HVR | YY358320HVR |
| Total Energy(kWh) | 100.24kWh | 107.4kWh | 114.56kWh |
| Capacity(Ah) | 280Ah | 300Ah | 320Ah |
| Nominal Voltage(V) | 358.4V | 358.4V | 358.4V |
| Float Voltage(V) | 408.8V | 408.8V | 408.8V |
| Equalization Voltage(V) | 392V | 392V | 392V |
| Discharge Cutting Voltage(V) | 313.6V | 313.6V | 313.6V |
| Max. Charge & Discharge Current(A) | 100A | 100A | 100A |
| Max. C Rating | 1C | 1C | 1C |
| Dimension(mm) | 1996.5*1200*660 | 1996.5*1200*660 | 1996.5*1200*710 |
| Net Weight(kg) | 920kg | 1070kg | 1310kg |
| Max. Scalable | 6 in parallel | ||
| Communication Ports | CAN/RS485/RS232 | ||
| Communicated inverter | “Goodwe/Victron/Sofar/Deye/Voltronic/Pylon /Luxpower Afore/Must; SakoSorotec/Sma/Solis/Phocos /Kstar/Mpp Solar/Growatt/Megarevo/Srme” | ||
| Charging Temp Range(°C) | 0-55°C | ||
| Discharging Temp Range(°C) | -10-55°C | ||
| Cycle Lifes | ≥6000 cycles@80%DOD/0.5C/25°C | ||
| Warranty | 5 years | ||
| Certifications | CE,UN38.3,MSDS | ||
| Function | WIFI | ||
