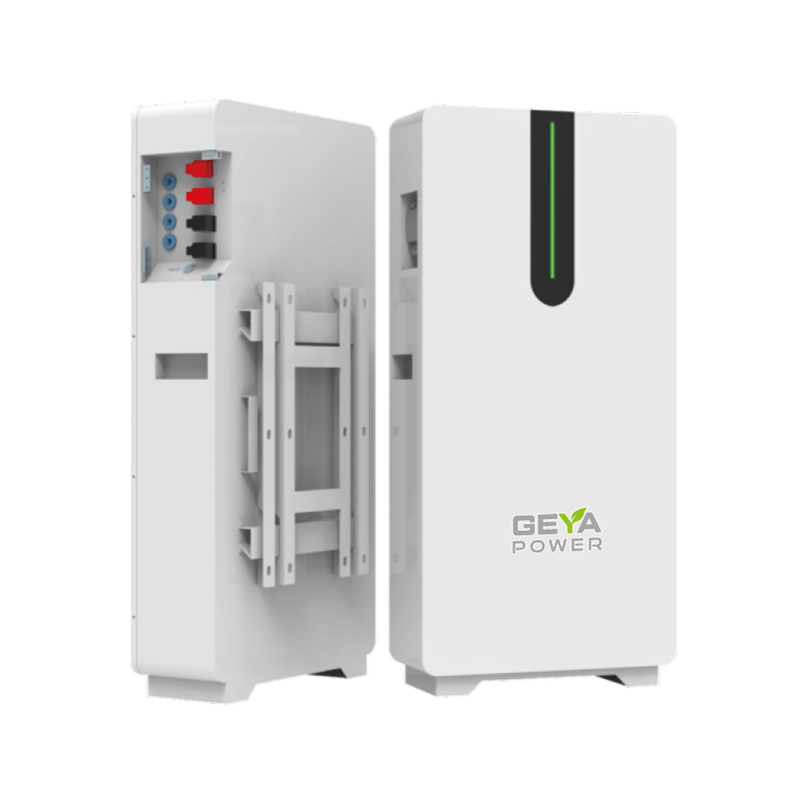

384V High Voltage Stacked Lithium Battery Series
Features
- High-voltage efficiency: Minimizes energy conversion loss.
- Commercial-grade: Handles heavy loads for homes/small businesses.
- Enhanced safety: Multi-layer protection for high-voltage operation.
- Flexible installation: Indoor/outdoor options with no extra brackets.
Specification
| Model | YY38427HVW |
| Total Energy(kWh) | 10.368KWh |
| Capacity(Ah) | 384Ah |
| Nominal Voltage(V) | 27V |
| Float Voltage(V) | 438V |
| Equalization Voltage(V) | 420V |
| Discharge Cutting Voltage(V) | 336V |
| Max. Charge & Discharge Current(A) | 27A |
| Max. C Rating | 1C |
| Dimension(mm) | 520*230*1060mm |
| Net Weight(kg) | 155kg |
| Max. Scalable | 8 in parallel |
| Communication Ports | CAN/RS485/RS232 |
| Communicated inverter | “Goodwe/Victron/Sofar/Deye/Voltronic/Pylon /Luxpower Afore/Must; SakoSorotec/Sma/Solis/Phocos /Kstar/Mpp Solar/Growatt/Megarevo/Srme” |
| Charging Temp Range(°C) | 0-55°C |
| Discharging Temp Range(°C) | -10-55°C |
| Cycle Lifes | ≥6000 cycles@80%DOD/0.5C/25°C |
| Warranty | 5 years |
| Certifications | CE,UN38.3,MSDS |
| Function | WIFI, Battery light |
