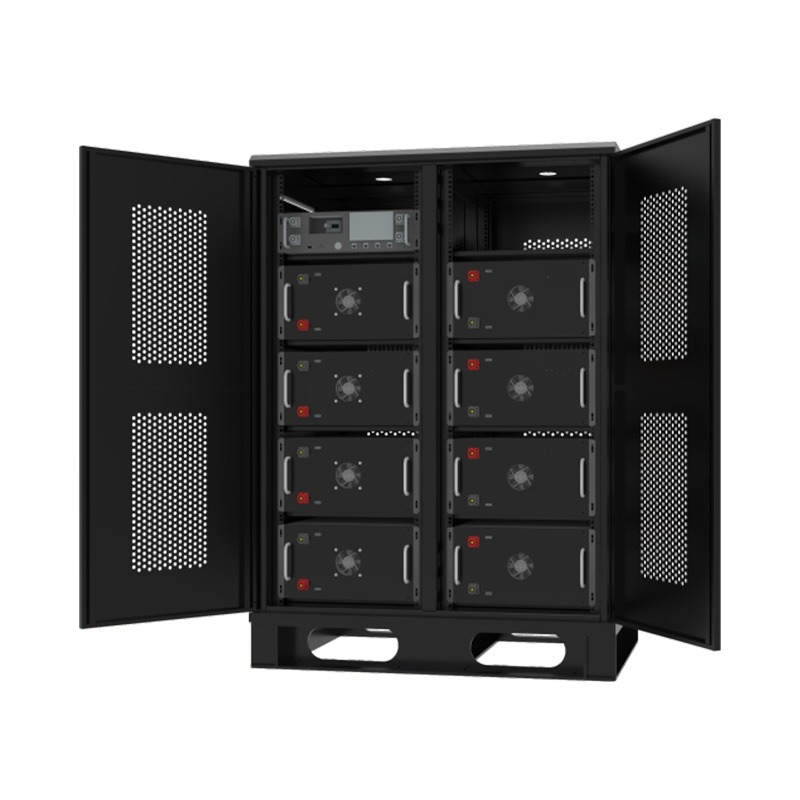

410V High Voltage Cabinet Energy Storage Series
Features
- High-voltage Efficiency: Supports high-voltage DC output (e.g.,200V~600V), reducing transmission loss and improving system efficiency by 5%~10%.
- Industrial integration:19-inch rack standard, scalable parallel connection for data centers or commercial use.
- High Power Density: Delivers 20kWh~100kWh per rack, maximizing space utilization.
- Advanced Safety: Multi-layer BS protection (over-voltage/current/isolation)+ forced air cooling for high-voltage stability.
- Enterprise Management: Compatible with SNMP/Modbus for EMS integration and remote monitoring.
Specification
| Model | YY410280HVR | YY410300HVR | YY410320HVR |
| Total Energy(kWh) | 114.8kWh | 123kWh | 131.2kWh |
| Capacity(Ah) | 280Ah | 300Ah | 320Ah |
| Nominal Voltage(V) | 409.6V | 409.6V | 409.6V |
| Float Voltage(V) | 467.2V | 467.2V | 467.2V |
| Equalization Voltage(V) | 448V | 448V | 448V |
| Discharge Cutting Voltage(V) | 358.4V | 358.4V | 358.4V |
| Max. Charge & Discharge Current(A) | 100A | 100A | 100A |
| Max. C Rating | 1C | 1C | 1C |
| Dimension(mm) | 1996.5*1200*660 | 1996.5*1200*660 | 1996.5*1200*710 |
| Net Weight(kg) | 990kg | 1140kg | 1380kg |
| Max. Scalable | 6 in parallel | ||
| Communication Ports | CAN/RS485/RS232 | ||
| Communicated inverter | “Goodwe/Victron/Sofar/Deye/Voltronic/Pylon /Luxpower Afore/Must; SakoSorotec/Sma/Solis/Phocos /Kstar/Mpp Solar/Growatt/Megarevo/Srme” | ||
| Charging Temp Range(°C) | 0-55°C | ||
| Discharging Temp Range(°C) | -10-55°C | ||
| Cycle Lifes | ≥6000 cycles@80%DOD/0.5C/25°C | ||
| Warranty | 5 years | ||
| Certifications | CE,UN38.3,MSDS | ||
| Function | WIFI | ||
