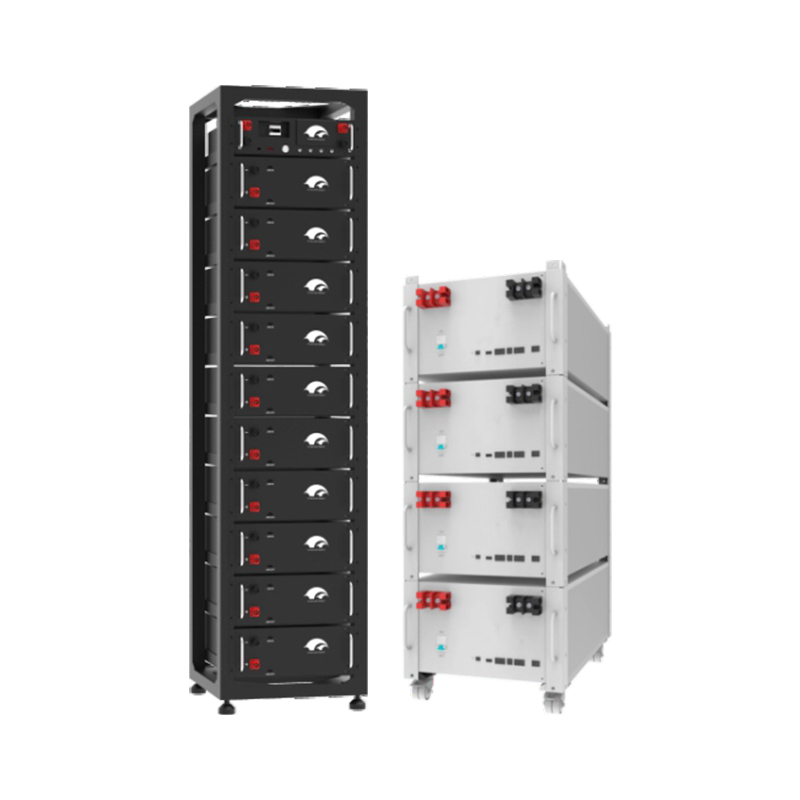

51.2V High Voltage Rack Energy Storage Series
Features
- High-voltage Eficiency: Supports high-voltage DCoutput(e.g.,200V~600V) reducing transmission loss and improving system efficiency by 5%~10%.
- Industrial Integration:19-inch rack standard,scalable parallel connection for data centers or commercial use.
- High Power Density: Delivers 20kWh~100kWh per rack, maximizing space utilization.
- Advanced Safety:Multi-layer BMS protection (over-voltage/current/isolation) + forced air coolingfor high-voltage stability.
- Enterprise Management: Compatible with SNMP/Modbus for EMS integration and remote monitoring.
Specification
| Model | YY358100HVR | YY410100HVR | YY512100HVR | YY614100HVR |
| Total Energy(kWh) | 35.84kWh | 40.96kWh | 51.2kWh | 61.44kWh |
| Capacity(Ah) | 100Ah | 100Ah | 100Ah | 100Ah |
| Nominal Voltage(V) | 358.4V | 409.6V | 512V | 614.4V |
| Float Voltage(V) | 408.8V | 467.2V | 584V | 700.8V |
| Equalization Voltage(V) | 392V | 448V | 560V | 672V |
| Discharge Cutting Voltage(V) | 313.6V | 358.4V | 448V | 537.6V |
| Max. Charge & Discharge Current(A) | 100A | 100A | 100A | 100A |
| Max. C Rating | 1C | 1C | 1C | 1C |
| Dimension(mm) | 600*650*1880 | 600*650*1880 | 600*650*2100 | 2*(600*650*1880) |
| Net Weight(kg) | 356kg | 409kg | 515kg | 621kg |
| Max. Scalable | 6 in parallel | |||
| Communication Ports | CAN/RS485/RS232 | |||
| Communicated inverter | “Goodwe/Victron/Sofar/Deye/Voltronic/Pylon /Luxpower Afore/Must; SakoSorotec/Sma/Solis/Phocos /Kstar/Mpp Solar/Growatt/Megarevo/Srme” | |||
| Charging Temp Range(°C) | 0-55°C | |||
| Discharging Temp Range(°C) | -10-55°C | |||
| Cycle Lifes | ≥6000 cycles@80%DOD/0.5C/25°C | |||
| Warranty | 5 years | |||
| Certifications | CE,UN38.3,MSDS | |||
| Function | WIFI | |||
