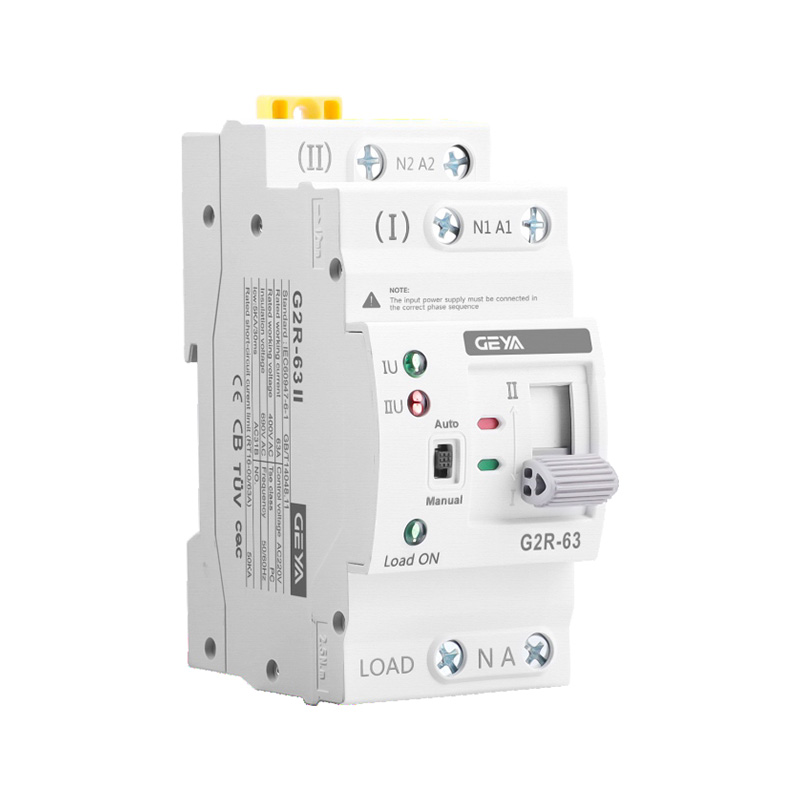

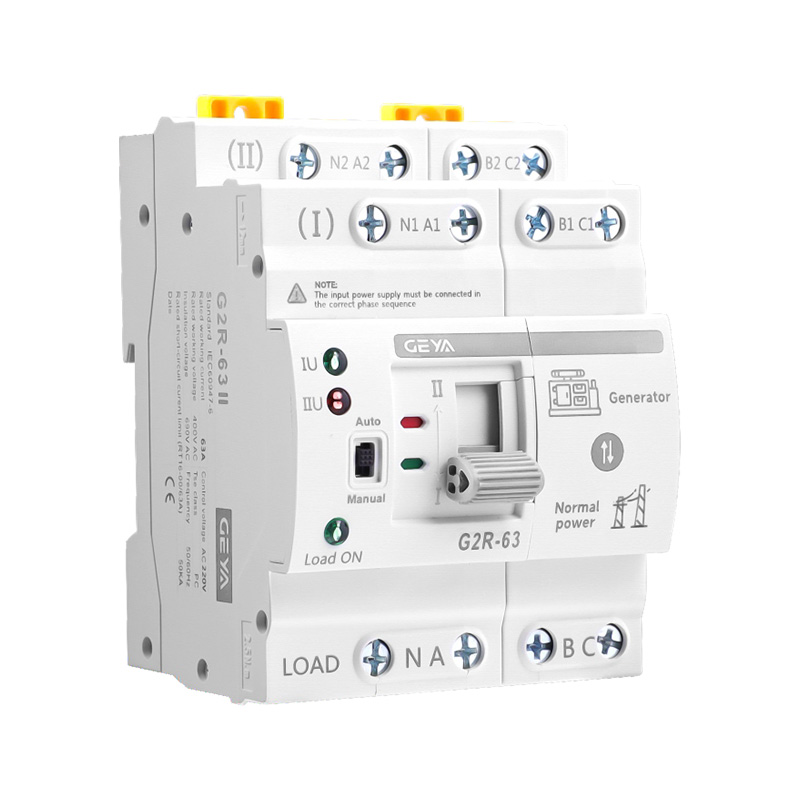

G2R Automatic Transfer Switch
Features
Overview
G2R-63 automatic transfer switch is a PC class infrequent change-over switch, with two-station design (commonly used for A and standby for B), suitable for AC systems with AC 50-60hz and rated current 6A-63A. The main function of the automatic transfer switch is when the main power (common power supply A) fails, the ATS will automatically switch to the backup power (Backup power supply B) to continue working, which can effectively solve the troubles caused by power outages.
Working Conditions
The temperature range of the operating environment is -5°C~+40°C, and the average temperature within 24 hours shall be lower than
+35°C, and the temperature range of the storage environment is -25°C~+55°C, which can be reached +70°C in a short time (within 24 hours)
The altitude of the installation site should be lower than 2000m.
The relative temperature at the installation site shall not exceed 50% when the ambient air temperature is +40°C.Higher relative humidity is possible at lower temperatures. For example: when the average minimum temperature of the wettest month is +20°C,the monthly average maximum relative humidity of that month can reach90% . Appropriate measures should be taken to prevent condensation due to temperature changes.
Pollution level 3 (conductive pollution, or dry non-conductive pollution becomes conductive due to condensation). ATS can be installed vertically or horizontally in the cabinet, if there are special installation requirements, contact us.
The protection grade of ATS case is IP30.
Overvoltage category
Main circuit category III; control and auxiliary circuit category II.

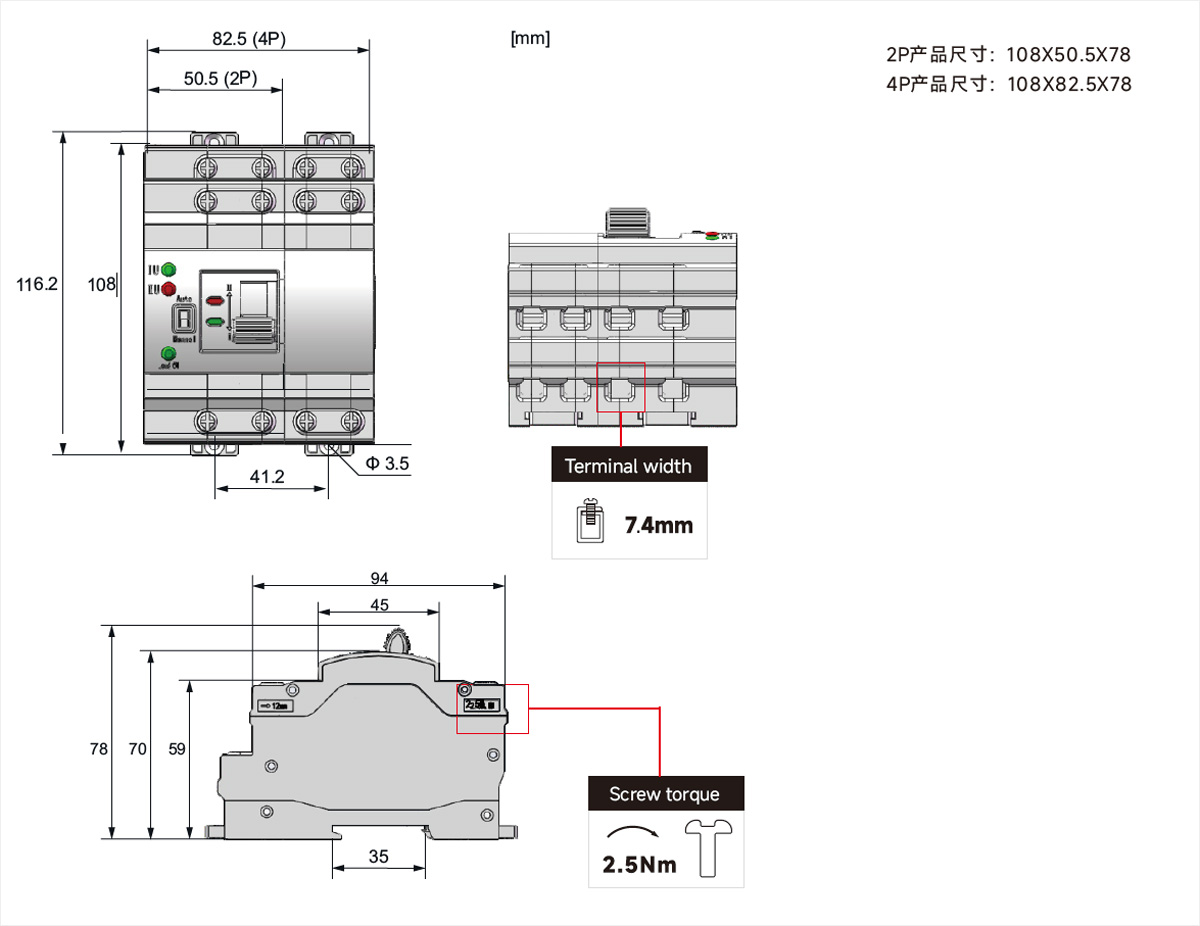

Product Size
Specification
Product Model and Meaning
| G | 2 | R | — | 63 | □ | □ |
| Company code | Product Category | Installation method | Case grade | Pole | ||
| ZHEJIANG GEYA ELECTRICAL CO.,LTD | PC class automatic transfer switch (two stations) | Din-rail installation | 63 | 2P/4P | Rated working voltage: AC220V, AC110V Rated operating current: 6A/10A/16A/20A/25A/ 32A/40A/50A/63A |
|
Technical Specification
| 63 | |||||||||
| Rated operating current leA | 06A | 10A | 16A | 20A | 25A | 32A | 40A | 50A | 63A |
| Rated insulation voltage Ui | 690V | ||||||||
| Rated impulse withstand voltage Uimp | 8kV | ||||||||
| Rated operating voltage Ue | AC220V/AC110V | ||||||||
| Rated frequency | 50/60Hz | ||||||||
| Class | PC class: can be switched on and loaded without generating short-circuit current | ||||||||
| Pole number | 2P | 4P | |||||||
| Rated short-circuit current Iq | 5kA | ||||||||
| Short circuit protection device (fuse) | RT16-00-63A | ||||||||
| Rated impulse withstand voltage | 8kV | ||||||||
| Control circuit | Rated control voltage Us: AC220V/110V,50/60Hz Normal working conditions: 85%Us~110%Us You must use an inverter with a power output of at least 3000W (please use a sine wave. Severe electromagnetic interference may cause the product to malfunction.) |
||||||||
| Auxiliary circuit | AC220V/110V 50/60Hz le=5A | ||||||||
| Overvoltage/undervoltage protection range | 220V/50Hz Undervoltage value: 175V (±5%) Recovery value: 190V (±5%). Overvoltage value: 270V (±5%) Recovery value: 250V (±5%) 110V/50Hz Undervoltage value: 85V (±5%) Recovery value: 90V (±5%). Overvoltage value: 140V (±5%) Recovery value: 135 (±5%) |
||||||||
| Mechanical life | ≥8000 times | ||||||||
| Electrical life | ≥1500 times | ||||||||
| Usage category | AC-31B | ||||||||
