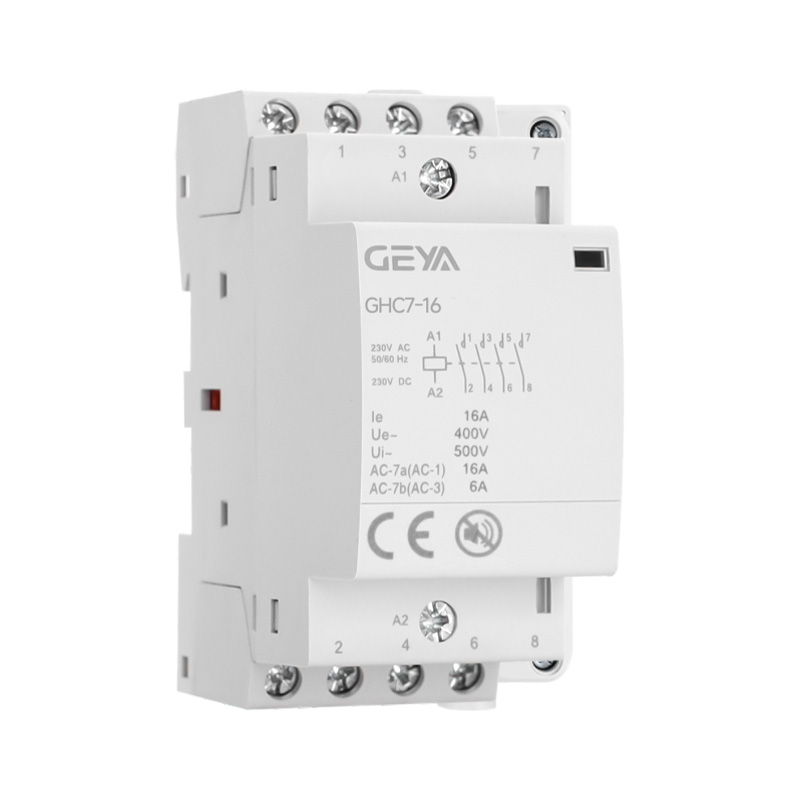

GHC7 Modular Contactor
Product Features
Application scope
The GHC7 modular contactor (hereinafter referred to as contactor) is mainly suitable for AC 50Hz (or 60Hz), rated working voltage to 400V and rated current operation in the circuit up to 63A, it can control the low-inductance and low-inductance load ofhousehold appliances and similar purposes; it can also be used to control the load of household motors. The power should bereduced accordingly.
The GHC7 contactors according to standard IEC/EN61095，IEC60947-4-1 and are used mainly in buildings for switching and controlling lighting, heating, ventilation and pumps. They are part of the complete range of Din rail products and can beintegrated easily in dedicated panels.
Model and Connotation

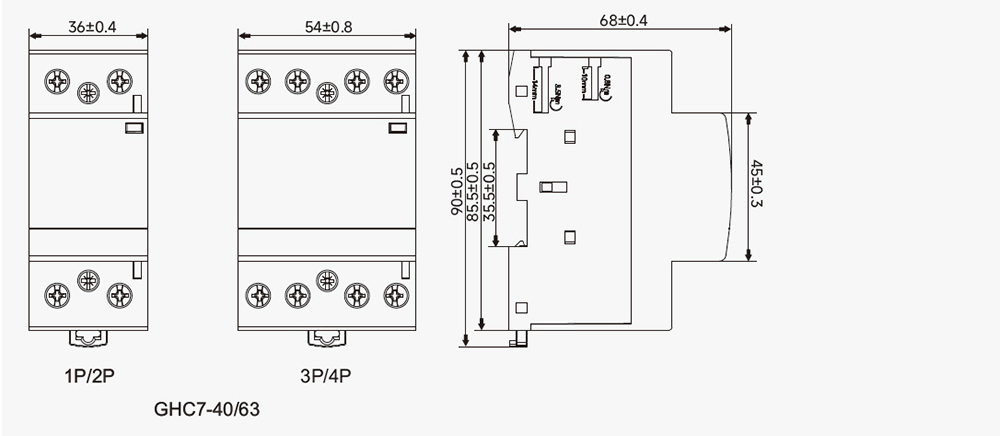

Dimensions(mm)
Modular Contactor Power Consumption
| Poles | Ie Rating | Uc (VAC)(50Hz) |
Power consumption | Max Power | ||
| AC-7a | AC-7b | Hold on | Pull in | |||
| 2P | 16A | 6A | 230 | 2.1VA | 2.1VA | 2.0W |
| 20A | 7A | 230 | 2.1VA | 2.1VA | 2.0W | |
| 25A | 9A | 230 | 2.1VA | 2.1VA | 2.0W | |
| 32A | 12A | 230 | 2.1VA | 2.1VA | 2.0W | |
| 40A | 18A | 230 | 2.3VA | 2.3VA | 2.0W | |
| 63A | 25A | 230 | 2.3VA | 2.3VA | 2.0W | |
| 4P | 16A | 6A | 230 | 2.3VA | 2.3VA | 2.0W |
| 20A | 7A | 230 | 2.3VA | 2.3VA | 2.0W | |
| 25A | 9A | 230 | 2.3VA | 2.3VA | 2.0W | |
| 32A | 12A | 230 | 2.3VA | 2.3VA | 2.0W | |
| 40A | 18A | 230 | 6.0VA | 6.0VA | 5.5W | |
| 63A | 25A | 230 | 6.0VA | 6.0VA | 5.5W | |
