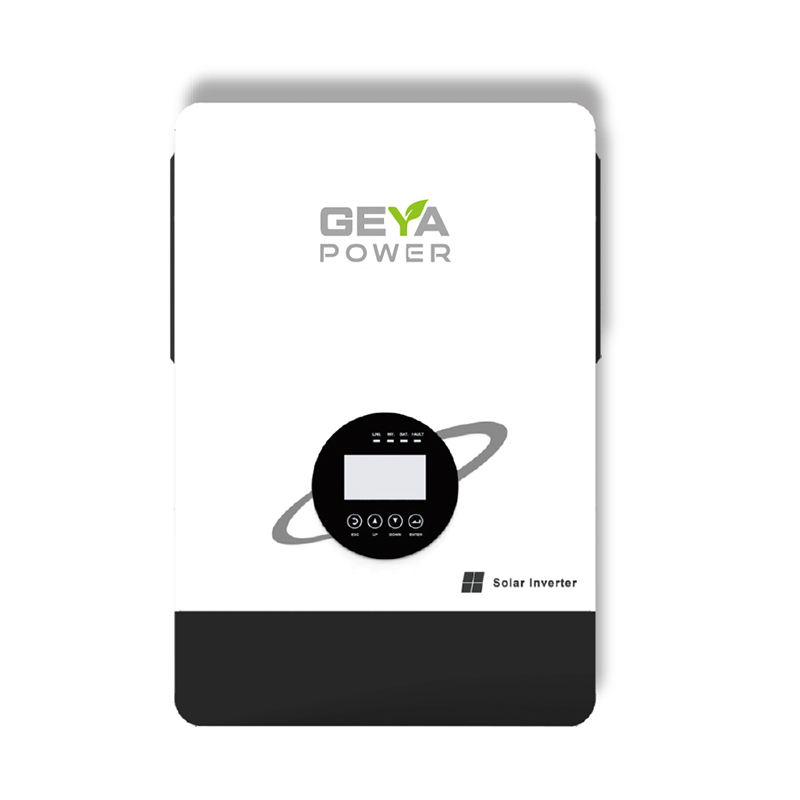

GSMP 3K-US Solar Storage Inverter
Features
- Adopt DSP full digital control mode
- High precision MPPT controller.
- The battery has a balanced charging mode
- Battery can use PV maximum to input voltage 500Vdc or not use.
- Both are congured the grid and PV prioritize.
- Monitoring system WIFI/GPRS option
- Support 6 machines in parallel, constitute three-phase four-wire power generation system.
- If the photovoltaic power is insucient, the photovoltaic can be combined with the power grid and battery to supply the load
- Economic model can be used to charge and discharge the inverter.
- Power grid and oil machine can be freely selected.
Specification
| Model | GYSMP-3K-US |
| Battery Input/ Output Data | |
| Battery Voltage | 24VDC |
| Hybrid Charging | 80A |
| Maximum Charging Current | 80A |
| Battery Type | Lithium/Lead-acid |
| Solar Input Data | |
| Maximum PV Input Power | 4550W |
| MPPT Range @ Operating Voltage | 120VDC -450VDC |
| Maximum PV Input Current | 25A |
| Number of Independent MPP Trackers | 1/1 |
| Strings Per MPP Tracker | 1/1 |
| Maximum PV Open-circuit Voltage | 500VDC |
| Maximum Solar Charge Current | 80A |
| AC Output Data Rated | |
| Power | 3600VA/3000W |
| Parallel Capability | .NO |
| AC Voltage Regulation | US(120VAC ± 5% @ 50/60Hz) |
| Surge Power | 6000VA |
| Efficiency (Peak) | 93% |
| Waveform | Pure sine wave |
| Transfer Time | 10ms typical, 20ms Max |
| AC Charger Data | |
| Charge Current | 60A |
| AC Input Voltage | US(120 VAC) |
| Selectable Voltage Range | 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances) 50Hz/60Hz |
| Frequency Range | 50HZ/60HZ(Auto sensing) |
| PHYSICAL Data | |
| Protection Degree | IP20 |
| Dimension (L/W/D) | 460(L)x285(W)x133(D)mm |
| Packaging Dimension (L/W/D) | 590 (L)x365(W)x200(D)mm |
| Net Weight | 8KG |
| OPERATING ENVIRONMENT Data | |
| Certificate | US(UL1741/FCC) |
| Humidity | 5% to 95% Relative Humidity(Non-condensing) |
| EMC Certification Level (EMC) | US(FCC) |
| Altitude | <2000m |
| Operating Temperature | 0°C~+55°C |
| Storage Temperature | -15°C~+60°C |
