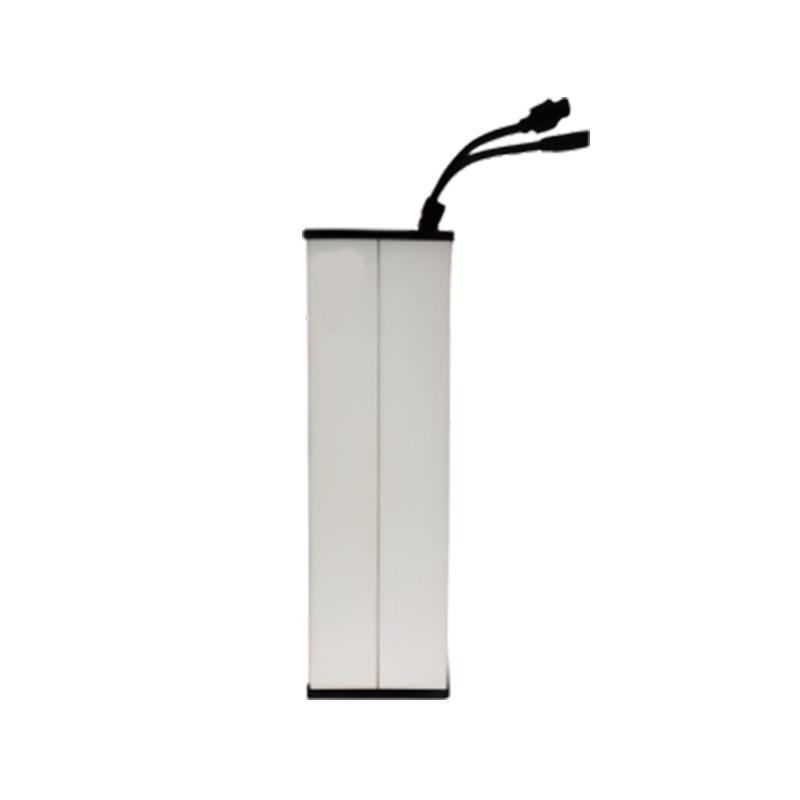

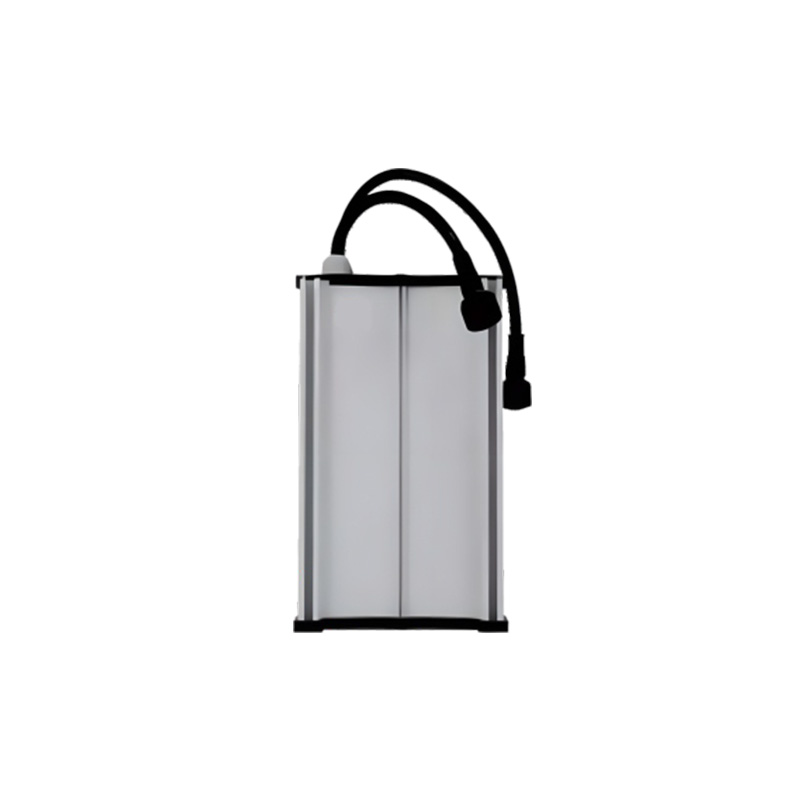

Street Lamp Series
Features
- High operational reliability
- Optimal management
- In line with the RoHS
- They live for more than 10 years at +25°C
Specification
| Model | YY1210SL | YY1230SL | YY1210SL | YY1230SL | YY1210SL | YY1230SL |
| Rate voltage(Vdc) | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 | 12.8 |
| Rate capacity(AH) | 10 | 30 | 50 | 100 | 120 | 200 |
| Energy storage(KWH) | 0.128 | 0.384 | 0.64 | 1.28 | 1.536 | 2.56 |
| MPPT(A) | 12V-5A | 12V-5A | 12V-5A | 12V-10A | 12V-15A | 12V-20A |
| Cycle Life | ≥3000 cycles@80%DOD/0.5C/25°C | |||||
| Charge voltage | 14.6±0.1V | |||||
| Charge current(A) | 2 | 6 | 10 | 20 | 24 | 40 |
| Max. Charge current(A) | 3 | 9 | 15 | 30 | 36 | 60 |
| Charge cut-off voltage(VDC) | 14.6±0.1V | |||||
| Continuuous current(A) | 3 | 9 | 15 | 30 | 36 | 60 |
| Discharge cut-off voltage(VDC) | 10 | |||||
| Charge temperature | 0°C to 45°C (32F to 113F)@60±25% Relative humidity | |||||
| Discharge temperature | -20°C to 60°C (-4°F to 140°F)@60±25% Relative humidity | |||||
| Storage temperature | 0°C to 40°C (32°F to 104°F)@60±25% Relative humidity | |||||
| Water dust resistance | Ip64 | |||||
| Warranty | 5 years | |||||
| Certifications | CE,UN38.3,MSDS | |||||
User Manual
LiFePo4 Battery – Street Lamp Series
