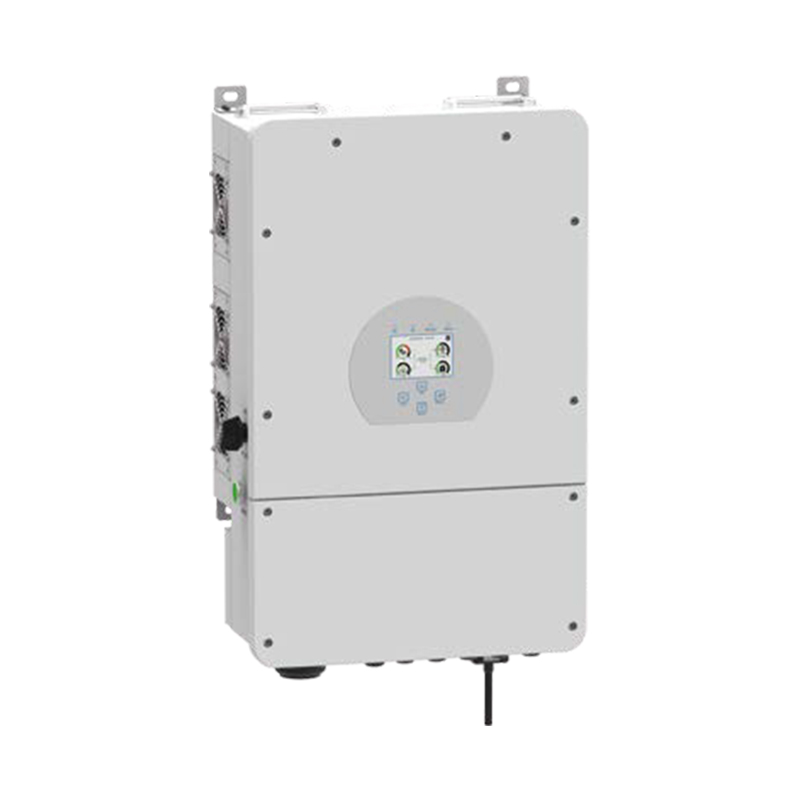

SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU
Features
- Colorful touch LCD, IP65 protection degree
- DC couple and AC couple to retroft existing solar system
- Max.16pcs parallel for on-grid and off-grid operation; Support mutiple batteries parallel
- Max. charging/discharging current of 190A
- 6 time periods for battery charging/discharging
- Support storing energy from diesel generator
Technical Data
| Model | SUN-5K -SG01LP1-US |
SUN-6K -SG01LP1-US |
SUN-7.6K -SG01LP1-US/EU |
SUN-8K -SG01LP1-US/EU |
| Battery Input Data | ||||
| Battery Type | Lead-acid or Li-Ion | |||
| Battery Voltage Range (V) | 40~60 | |||
| Max. Charging Current (A) | 120 | 135 | 190 | 190 |
| Max. Discharging Current (A) | 120 | 135 | 190 | 190 |
| External Temperature Sensor | Yes | |||
| Charging Curve | 3 Stages / Equalization | |||
| Charging Strategy for Li-Ion Batteries | Self-adaption to BMS | |||
| PV String Input Data | ||||
| Max. DC Input Power (W) | 6500 | 7800 | 9880 | 10400 |
| Rated PV Input Voltage (V) | 370 (125~500) | |||
| Start-up Voltage (V) | 125 | |||
| MPPT Voltage Range (V) | 150-425 | |||
| Full Load DC Voltage Range (V) | 300-425 | |||
| PV Input Current (A) | 13+13 | 26+13 | 26+26 | 34+34 |
| Max. PV ISC (A) | 17+17 | 34+17 | 34+34 | 43+43 |
| Number of MPPT / Strings per MPPT | 2/1+1 | 2/2+1 | 2/2+1 | 2/2+2 |
| AC Output Data | ||||
| Rated AC Output and UPS Power (W) | 5000 | 6000 | 7600 | 8000 |
| Max. AC Output Power (W) | 5500 | 6600 | 8360 | 8800 |
| AC Output Rated Current (A) | 20.8/24 | 25/28.8 | 31.7/36.5 | 33.3/38.5 |
| Max. AC Current (A) | 22.9/26.4 | 27.5/31.7 | 34.8/40.2 | 36.7/42.3 |
| Max. Continuous AC Passthrough (A) | 40 | 40 | 50 | 50 |
| Peak Power (off grid) | 2 time of rated power, 10 S | |||
| Power Factor | 0.8 leading to 0.8 lagging | |||
| Output Frequency and Voltage | 50 / 60Hz; L1/L2/N/PE 120/240Vac (split phase), 208Vac (3-phase) | L/N/PE 220/230Vac (single phase) | L/N/PE 220/230Vac (single phase) | L/N/PE 220/230Vac (single phase) |
| Grid Type | Split phase; 2/3 phase; Single Phase | Split phase; 2/3 phase; Single Phase | Split phase; 2/3 phase; Single Phase | Split phase; 2/3 phase; Single Phase |
| DC Injection current (mA) | THD<3% (Linear load<1.5%) | |||
| Efficiency | ||||
| Max. Efficiency | 97.60% | |||
| Euro Efficiency | 97.00% | |||
| MPPT Efficiency | 99.90% | |||
| Protection | ||||
| Integrated | PV Input Lightning Protection, Anti-Islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection | |||
| Certifications and Standards | ||||
| Grid Regulation | CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 62116, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699, C10-11 | |||
| Safety EMC / Standard | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | |||
| General Data | ||||
| Operating Temperature Range (°C) | -45~60°C, >45°C derating | |||
| Cooling | Smart cooling | |||
| Noise (dB) | <30 dB | |||
| Communication with BMS | RS485; CAN | |||
| Weight (kg) | 32 | |||
| Size (mm) | 420Wx670Hx233D | |||
| Protection Degree | IP65 | |||
| Installation Style | Wall-mounted | |||
| Warranty | 5 years | |||
