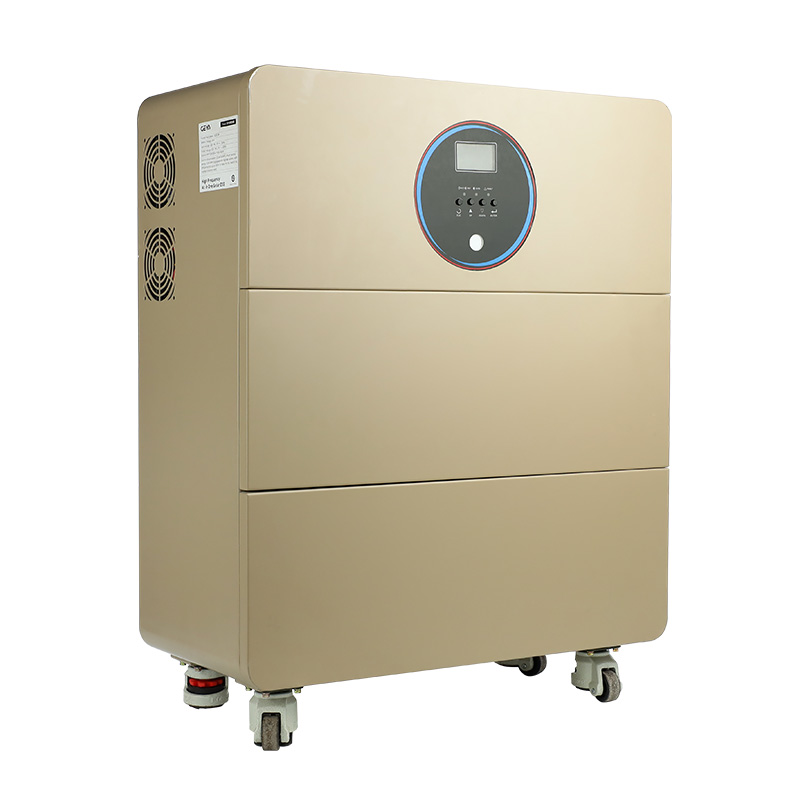

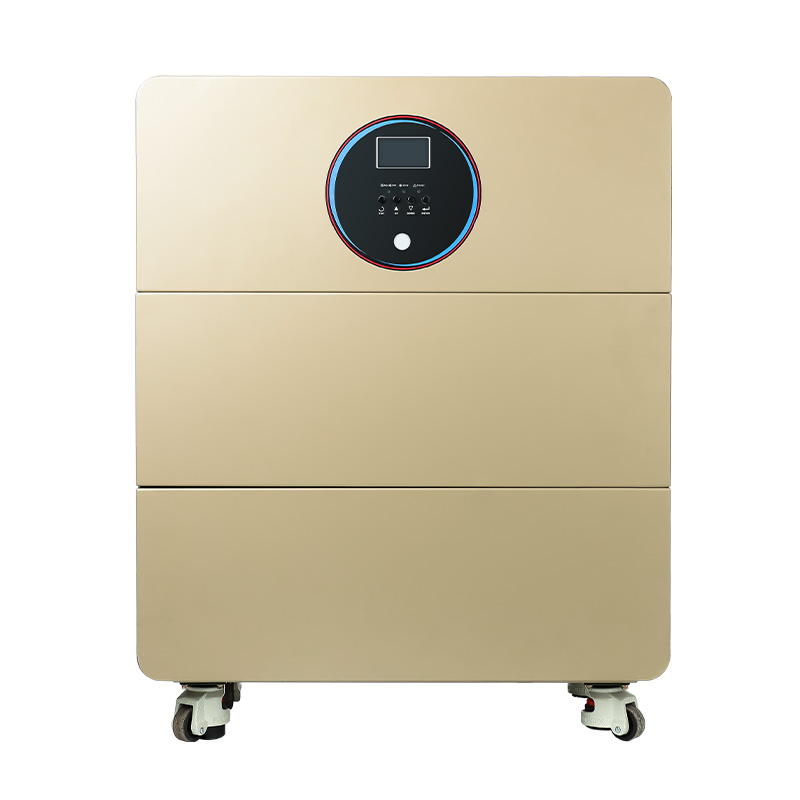

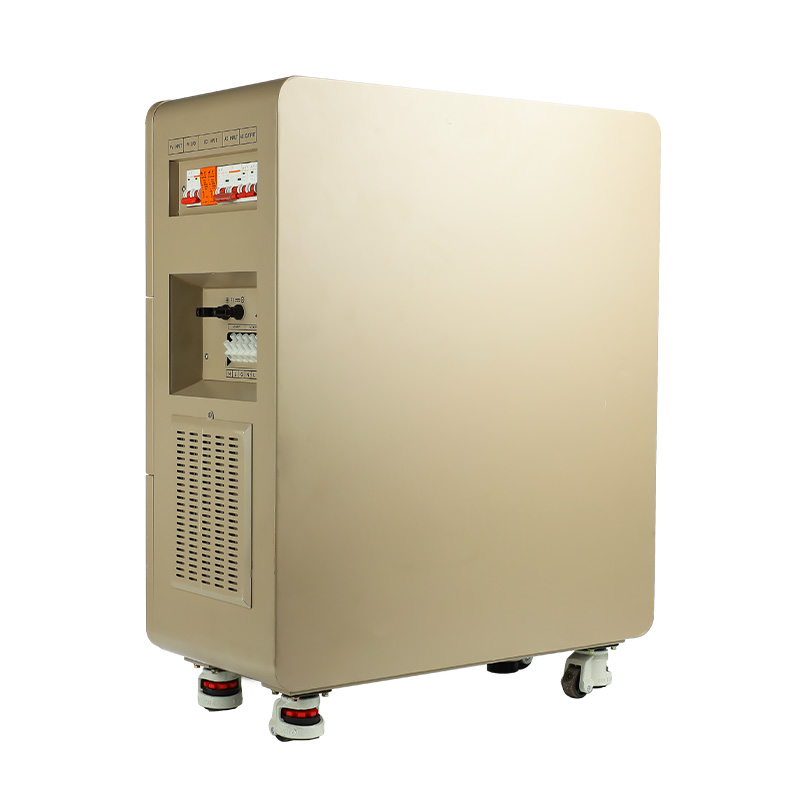

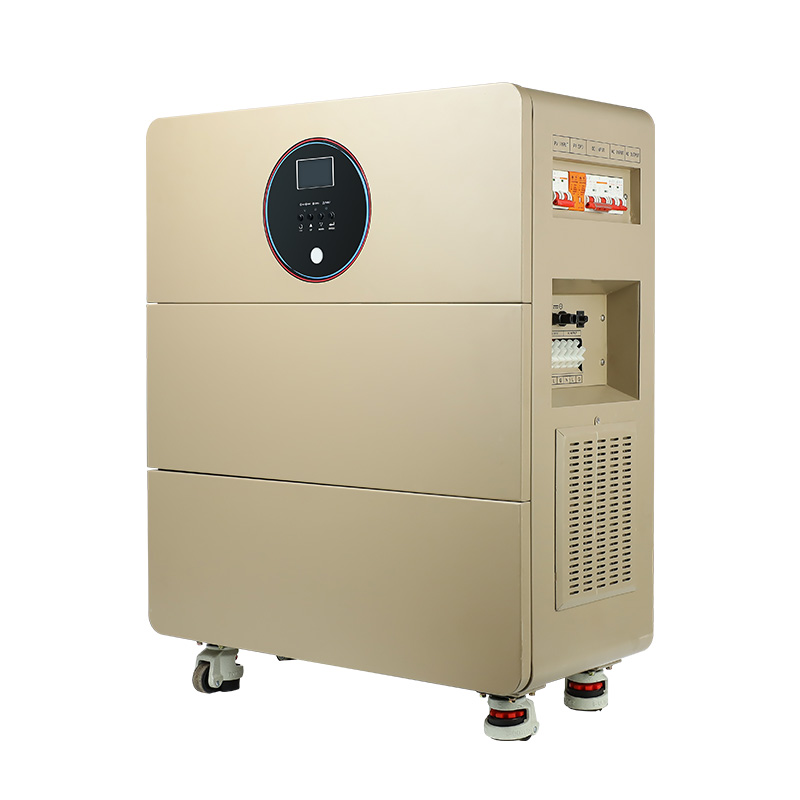

All In One Solar ESS
Product Features
Steps to start up
Connect the battery that meets the requirements (battery voltage needs to beyond23V)or AC (AC needs to confirm the suitable input range depend on the output mode), then you can start up the inverter.
Mains power on
Connect to normal AC power, press the switch, the system will automatically turn on. lf you set AC output power priority, after waiting for a period of time, the panel will display AC mode that represents turn on the machine successfully, then will enter the AC mode.
When the normal mains power is connected and press the power-on button then the system will automatically power on. lf it is set as AC output priority, after a period of time, the panel will display the AC mode to indicate that the power-on is complete and enter the AC mode.
Battery boot
Connect to battery, press the power-on button to establish a working power source.
The system will automatically turn on, after waiting for a period of time, the panel will display battery mode that represents turn on the machine successfully, then will enter the battery mode.
Technical Datasheet
| Model | 3000W | 3600W | 4000W | 5500W | 6200W | 11000W | ||
| Input | Input Sources | |||||||
| L+N+PE | ||||||||
| Rated Input Voltage | ||||||||
| 220/230/240VAC | ||||||||
| Voltage Range | 90-280VAC±3V(APL Mode);170-280VAC±3V(UPS Mode) | |||||||
| 50Hz/60Hz(Auto Adaptive) | ||||||||
| Frequency | ||||||||
| Output | Rated power | The battery inverts | 3000W | 3600W | 4000W | 5500W | 6200W | 11000W |
| Photovoltaic inverter | 3000W | 3600W | 4500W | 6500W | 6500W | 11000W | ||
| Output Voltage | 220/230/240VAC±5% | |||||||
| Output Frequency | 50/60Hz±0.1% | |||||||
| Waveform | Pure Sine Wave | |||||||
| Transfer Time (adjustable) | Computers(UPS Mode)10ms, Appliance(APL Mode)20ms | |||||||
| Peak Power | 6000VA | 7200VA | 8000VA | 11000VA | 12400VA | 22000VA | ||
| Overload capacity | Battery mode 11s@105%~150% Load; 2s@150%~200% Load; 400ms@>200% Load | |||||||
| Grid-connected operation | Output Voltage | 220/230/240VAC±5% | ||||||
| Feed into the grid voltage range | 195-253VA | |||||||
| Feed into the grid frequency range | 49-51±1Hz/59-61±1Hz | |||||||
| Nominal output current | 13A | 15.7A | 17.4A | 23.9A | 26.9A | 47.8A | ||
| Power Factor Range | >0.99 | |||||||
| Maximum conversion efficiency (DC/AC) | 98% | |||||||
| Battery Voltage | 24Vdc | 24Vdc | 24Vdc | 48Vdc | 48Vdc | 48Vdc | ||
| Battery | Constant Charging Voltage(Adjustable) | 28.2Vdc | 28.2Vdc | 28.2Vdc | 56.4Vdc | 56.4Vdc | 56.4Vdc | |
| Floate Charging Voltage(Adjustable) | 27Vdc | 27Vdc | 27Vdc | 54Vdc | 54Vdc | 54Vdc | ||
| PV Charging Mode | MPPT | MPPT | MPPT | MPPT | MPPT | MPPT Dual MPPT | ||
| MAX.PV Input Power | 5000W | 5000W | 6500W | 7500W | 7500W | 2*5500W | ||
| MPPT Tracking Range | 60~500Vdc | |||||||
| Chargers | Best voltage | 300~400V | 300~400V | 300~400V | 300~400V | 300~400V | 300~400V | |
| MAX.PV Input Voltage | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | 500Vdc | ||
| PV max input current | 18A | 18A | 27A | 27A | 27A | 18A/18A | ||
| MAX.PV Charging Current | 100A | 120A | 120A | 100A | 120A | 150A | ||
| MAX.AC Charging Current | 60A | 100A | 100A | 100A | 100A | 150A | ||
| MAX.Charging Current | 100A | 120A | 120A | 100A | 120A | 150A | ||
| Display | LCD interface | |||||||
| RS232 | Baud Rate 2400 | |||||||
| Interface | Lithium Battery BMS Communication Card WifiCard, Dry Contact | |||||||
| Extend the socket communication interface | ||||||||
| Parallel machine interface | No parallel function | Parallel Machine (network) function | ||||||
| Environments | Operating Temperature | -10~50°C | ||||||
| Humidity | 20%~95%(Non-condensing) | |||||||
| Storage Temperature | -15~60°C | |||||||
| Altitude | Altitude Not Over 1000m,Derating over 1000m,Max 4000m | |||||||
| Noise | ≤50db | |||||||
