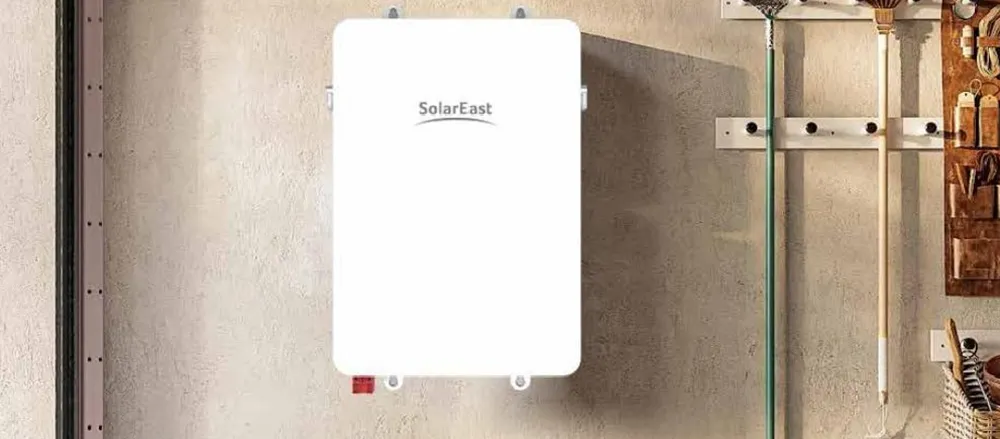

PowerCool-WLL005B1 Wall-mounted Residential ESS
Features
- Large Capacity
- Built-in BMS Protection
- Reliable Backup Power
- Reliable Operation
- Optimal Management
Specification
| PowerCool-WLL⁰05B1 | |
| Total Energy | 5.12kWh |
| Usable Energy(DC) | 4.86kWh |
| Voltage | 44.8-57.6Vdc |
| Nominal Voltage | 5.12Vdc |
| Rated Capacity | 100Ah |
| Max.Charge Voltage | 57.6Vdc |
| Nominal Discharging Current | 80A(1P)/160A(2P)/160A(3P)/160A(4P)/160A(5P)/160A(6P) |
| Nominal Charging Curent | 50A(1P)/100A(2P)/150A(3P)/160A(4P)/160A(5P)/160A(6P) |
| Weight | 47kg |
| Dimension(mm)(H*L*W) | 620*420*135mm |
| Maxrecommended DOD | 95% |
| Operating Condition | Indoor |
| Operating Charge | 0-55℃ |
| Temperature Discharge | 0~55℃ |
| Standard Ambient Temperature Range | 0~40 |
| Storage Temperature Range | 0℃to 40℃@60+25%Relative Humidity |
| Humidity | 5%~95%(RH)(No Condensation) |
| Over voltage Category | IⅡ |
| Cooling Type | Natural cooling |
| Case Material | Metal |
| Installation | Wal-mouted or flor-standing |
| IP Rating | IP 20 |
| Protective Class | |
| Max.Connection Number | 6P |
| Communication | CAN/RS485 |
| Battery Protection | Over-current/Over-voltage/Short circuit/Under-voltage/Over-temperature |
| Cetificates | CE,UN38.3.MSDS |
| Waranty | 5 years |
Testing conditions based on temperature 25’C at the beginning of life.
Total Energy/Usable Energy measured under specific conditions from PowerCoo-WLL005B1 0.2C CC-CV
