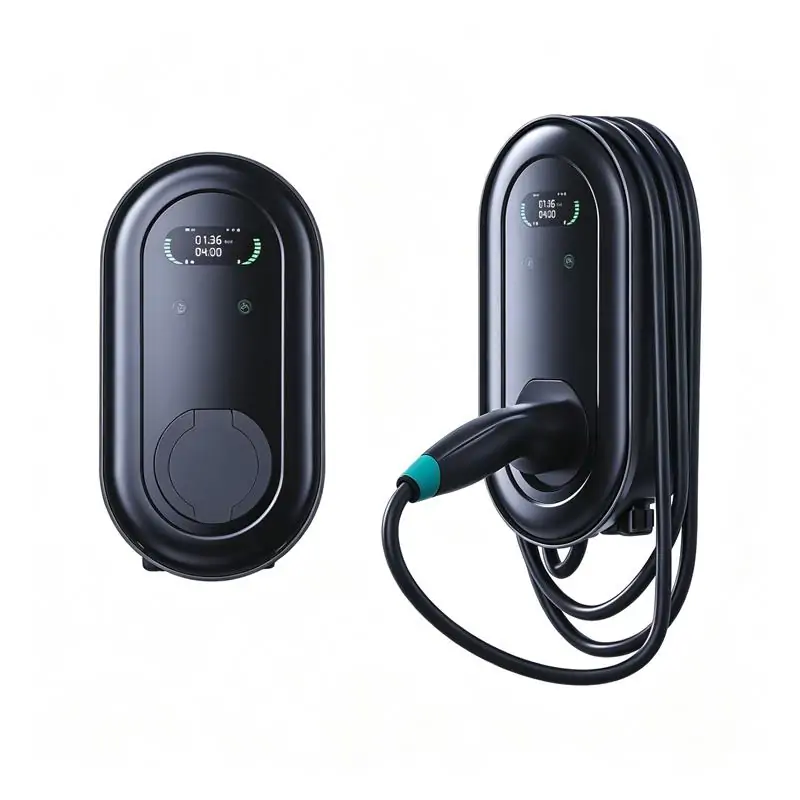

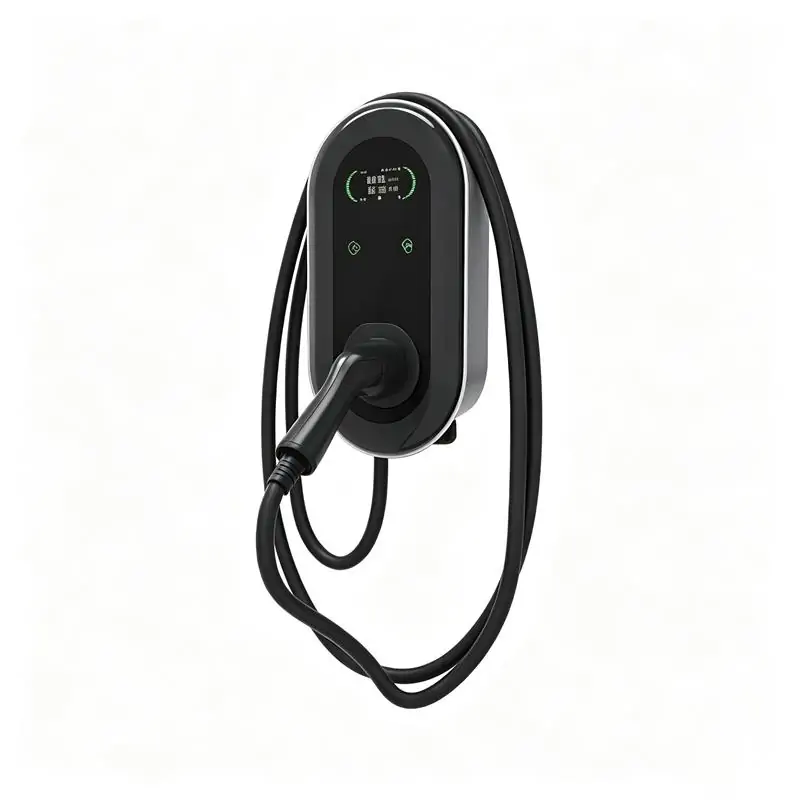

AO (7kW/11kW/22kW) AC Charging Point
The AO Series AC Charging Point is a smart and reliable EV charging solution designed for residential, commercial, and public charging applications. Available in 7.4kW, 11kW, and 22kW power ratings, it supports flexible charging requirements for different electric vehicles and installation environments.
Equipped with Type 2 charging interfaces, multiple communication options including WiFi, Bluetooth, 4G, and LAN, and OCPP 1.6J compatibility, the AO Series enables intelligent charging management through APP, RFID, and plug-and-play operation. With IP65 protection, built-in RCD protection, and comprehensive electrical safety functions, it ensures safe and efficient EV charging indoors and outdoors.
•Flexible Power Options: Supports single-phase and three-phase charging with rated power options of 7.4kW, 11kW, and 22kW to meet different EV charging requirements.
•Smart Charging Control: Provides flexible charging management through mobile APP, RFID card, and Plug & Play modes for convenient operation.
•Comprehensive Safety Protection: Integrated with over-current, over-voltage, under-voltage, leakage, and PE ground protection, with built-in RCD (Type A + DC 6mA) for enhanced charging safety.
•Multiple Connectivity Options: Features WiFi + Bluetooth, 4G, and LAN communication interfaces, supporting OCPP 1.6J protocol for smart charging platform integration.
•Type 2 Charging Compatibility: Equipped with Type 2 socket and cable options, ensuring compatibility with widely used electric vehicles and charging standards.
•Durable Outdoor Design: Designed with IP65 protection and a wide operating temperature range from -30°C to 50°C, suitable for indoor and outdoor installation.
•Compact Installation Design: Supports wall-mounted or optional pole-mounted installation with a compact structure for space-saving deployment.
Features
Please read carefully to understand the correct use of the device before installation, maintenance and operation!
Please follow the safety notes; otherwise, it may lead to a danger of death, injury and damage to the device, supplier cannot accept any liability for claims resulting from this .
Thank you very much to use our AC Charging Point
● This manual describes the installation, use and maintenance of AC Charging point. This manual is intended for installation and maintenance personnel.
● The text and illustrations in this user manual are general explanations of these type of equipment, and the actual product may be inconsistent with this manual in detail .
Safety notes
▲ Leave no inflammable or explosive substances near the EV Charging point; otherwise, hazardous blast may result.
▲ Installation and wiring should be done by personnel with professional qualification, otherwise, hazardous electric shock may result.
▲ Make sure input power supply is entirely disconnected before wiring; otherwise, hazardous electric shock may result.
▲ Earth terminal of the EV Charging point must be grounded securely; otherwise, hazardous electric shock may result.
▲ The lead nose of the charging point must be securely attached or there is a risk of damaging the equipment.
▲ Leave no metals such as bolts, gaskets into the inside of the EV Charging point; otherwise, hazardous blast and fire may result.
▲ Strictly forbidden for minors or persons of restricted capacity to approach the charging point to avoid injury.
▲ Forced charging is strictly forbidden when the electric vehicle or charging point fails.
▲ It is strictly prohibited to use the charging point when the charging adapter or charging cables are defective, cracked, worn, broken or the charging cables is exposed. If you find any, please contact the supplier in time.
▲ EV can only be charged with the engine off and stationary.
▲ Accessory replacement must be done by qualified personnel, thrums or metals are prohibited to be left in the controller; otherwise, hazardous blast and fire may result.
▲ It is recommended that routine safety inspection visits to charging point be conducted at least once a week.
▲ Keep the charging connector clean and dry and wipe with a clean, dry cloth if soiled.
Technical Specification
| AC Power supply | EAW-A007xxx | 1P + N + PE |
| EAW-A011xxx, EAW-A022xxx | 3P + N + PE | |
| Rated Power | EAW-A007xxx | 7.4kW |
| EAW-A011xxx | 11kW | |
| EAW-A022xxx | 22kW | |
| Rated Voltage | EAW-A007xxx | AC 230V, 50/60Hz |
| EAW-A011xxx, EAW-A022xxx | AC 400V, 50/60Hz | |
| Rated Current | EAW-A011xxx | 16A |
| EAW-A007xxx, EAW-A022xxx | 32A | |
| Charge system | Mode 3 | |
| Socket/ Cable | EAW-AOxxSxx | Type 2 Socket, Case B connection |
| EAW-AOxxTxx | Type 2 Socket, Case B connection | |
| Charging Control | APP, RFID, plug&play | |
| Display Screen | EAW-A0xxx1x | 3.8-inch LCD screen |
| Indicator Light | EAW-AOxxxOx | 4 LED lights |
| Communication Interface | WiFi + BT, 4G, LAN | |
| Communication Protocol | OCPP 1.6J | |
| Safety Protection | Over current protection, over voltage protection, under voltage protection, leakage protection, unconnected PE ground protection etc. | |
| RCD | Type A (30mA) + DC 6mA built-in | |
| Altitude | 2000m | |
| Storage temperature | -40~75°C | |
| Operation temperature | -30~50°C | |
| Relative humidity | 95%RH, No water droplet condensation | |
| Vibration | 0.5G, No acute vibration and impact | |
| Installation location | Indoor or outdoor, good ventilation, no flammable, explosive gases | |
| Product Net Weight | EAW-A022Sxx | 2.6KG |
| EAW-A011Sxx | 2.4KG | |
| EAW-A007Sxx | 2.4KG | |
| EAW-A022Txx | 5KG | |
| EAW-A007Txx | 3.8KG | |
| EAW-A011Txx | 4KG | |
| Product size | EAW-AOxxSxx | Height: 388.45mm; Width: 202.45mm; Depth: 116mm |
| Packaging box dimensions | EAW-AOxxTxx | Height: 388.45mm; Width: 202.45mm; Depth: 107.26mm |
| EAW-AOxxSxx | Height: 455mm; Width: 260mm; Depth: 150mm | |
| EAW-AOxxTxx | Height: 455mm; Width: 260mm; Depth: 230mm | |
| Mounting | Wall-mounted or pole-mounted (mounting pole is optional) | |
| IP Code | IP65 |
