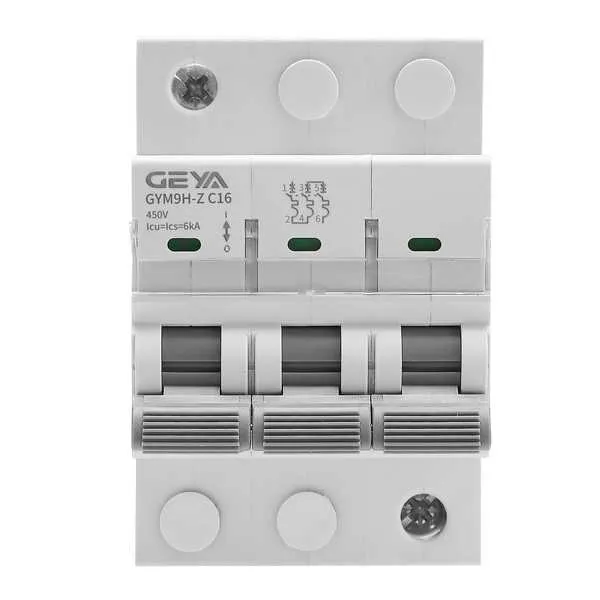

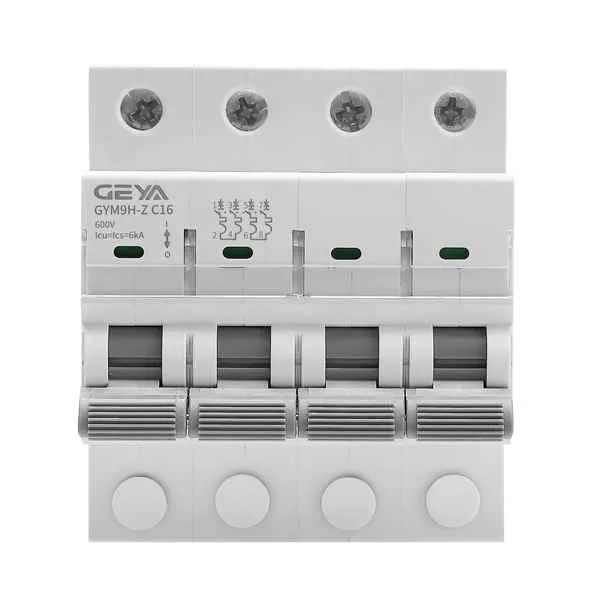

GYM9H-Z AC/DC Miniature Circuit Breaker 1-63A 1P-4P
GYM9H-Z 1-63A AC/DC Miniature Circuit Breaker with 1P-4P options, designed for overload and short circuit protection in industrial, commercial and DC applications.
• AC/DC dual application circuit breaker
• Rated current up to 63A
• 1P / 2P / 3P / 4P poles available
• Rated voltage up to 600VDC
• Breaking Capacity: 6kA
• IEC 60947-2 / GB 14048.2 compliant
• Thermal magnetic protection design
• Double busbar wiring structure
• Transparent identification window
• Quick closing function
Product Description
- High Breaking Capacity: Available with 6kA and 10kA breaking capacity for reliable fault protection.
- Overload and Short-circuit Protection: Provides effective protection against electrical overloads and short circuits.
- Multiple Tripping Curves: Supports B, C, and D curves to meet different application requirements.
- Flexible Pole Options: Available in 1P, 2P, 3P, and 4P configurations.
- Wide Current Range: Rated current options from 1A to 63A.
- DIN Rail Installation: Compact modular design enables fast installation in distribution boards.
- Reliable Safety Design: High-strength flame-retardant housing and efficient arc extinguishing system improve safety performance.
- Wide Applications: Suitable for industrial facilities, commercial buildings, high-rise buildings, and residential electrical systems.
Technical Parameter
| Technical Parameter | Specification |
|---|---|
| Poles | 1P/2P/3P/4P |
| Rated current (In) | 1-63A |
| Rated voltage (Ue) | 1P: 48/60/125V DC 2P: 110/125/250/300V DC 3P: 450V DC 4P: 600V DC |
| Rated impulse withstand voltage (Uimp) | 6kV |
| Rated breaking capacity (Ics) | 6kA |
| Trip method | Thermal magnetic trip |
| Thermo-magnetic release characteristic | B: 5.5In ±20% C: 8.5In ±20% |
| Mechanical life | 20000 operations |
| Electric life | 24/h (≤32A): 2500 (≤20A) 120/h (>32A): 1500 (>20A) |
| Protection class | Direct installation: IP20 Installed in distribution box: IP40 |
| Reference temperature for setting of thermal element | 30℃ |
| Ambient temperature | -25℃ to +60℃ |
| Storage temperature | -25℃ to +70℃ |
| Wiring size | Copper/Hard Wire: 1-25mm² Cord/Hoop Terminals: 1-16mm² |
| Contact status indication | Yes |
| Circuit identification | Yes |
Application Fields
Product Applications
GYM9H High Breaking Capacity Miniature Circuit Breaker is designed for reliable overload and short-circuit protection in low-voltage DC electrical systems. With high breaking capacity, flexible pole configurations, and compact DIN rail installation, it is suitable for a wide range of power distribution and protection applications.
- Solar Energy Systems:
Used for DC circuit protection in photovoltaic power generation systems, protecting solar panels, combiner boxes, and DC distribution equipment from overload and short-circuit faults. - Energy Storage Systems:
Provides reliable protection for battery storage systems, DC cabinets, and energy management equipment to improve system safety and operational stability. - Industrial Control Systems:
Suitable for industrial automation equipment, control panels, and machinery power circuits requiring dependable DC protection. - Communication and Data Equipment:
Applied in communication power supplies, data centers, and network equipment to ensure stable operation and protect sensitive electrical components. - Transportation Systems:
Used in electric vehicles, charging infrastructure, railway systems, and other DC power applications requiring reliable circuit protection. - Commercial and Building Electrical Systems:
Provides circuit protection for distribution boards, commercial facilities, and building automation systems.
Frequently Asked Questions (FAQ)
What is the GYM9H High Breaking Capacity Miniature Circuit Breaker?
The GYM9H High Breaking Capacity Miniature Circuit Breaker is a DC circuit protection device designed to provide reliable overload and short-circuit protection. It features high breaking capacity, flexible pole configurations, and compact DIN rail installation for various electrical applications.
What is the maximum breaking capacity of the GYM9H circuit breaker?
The GYM9H miniature circuit breaker provides a rated breaking capacity of up to 6kA, ensuring reliable protection against short-circuit faults in DC power systems.
What rated voltage options are available for the GYM9H?
The GYM9H supports different DC voltage ratings depending on the number of poles, including 48V, 60V, 125V, 250V, 300V, 450V, and 600V DC configurations.
Where can the GYM9H High Breaking Capacity Miniature Circuit Breaker be used?
The GYM9H is suitable for solar PV systems, energy storage systems, industrial control equipment, communication power supplies, transportation systems, and DC distribution applications.
What protection functions does the GYM9H provide?
The GYM9H provides thermal magnetic protection, combining overload protection and short-circuit protection to improve electrical system safety and reliability.
What tripping curves are available for the GYM9H?
The GYM9H supports B and C thermal-magnetic tripping characteristics, allowing flexible selection according to different load conditions and application requirements.
How is the GYM9H installed?
The GYM9H adopts a standard 35mm DIN rail mounting design, allowing quick and convenient installation in distribution boards and electrical cabinets.
