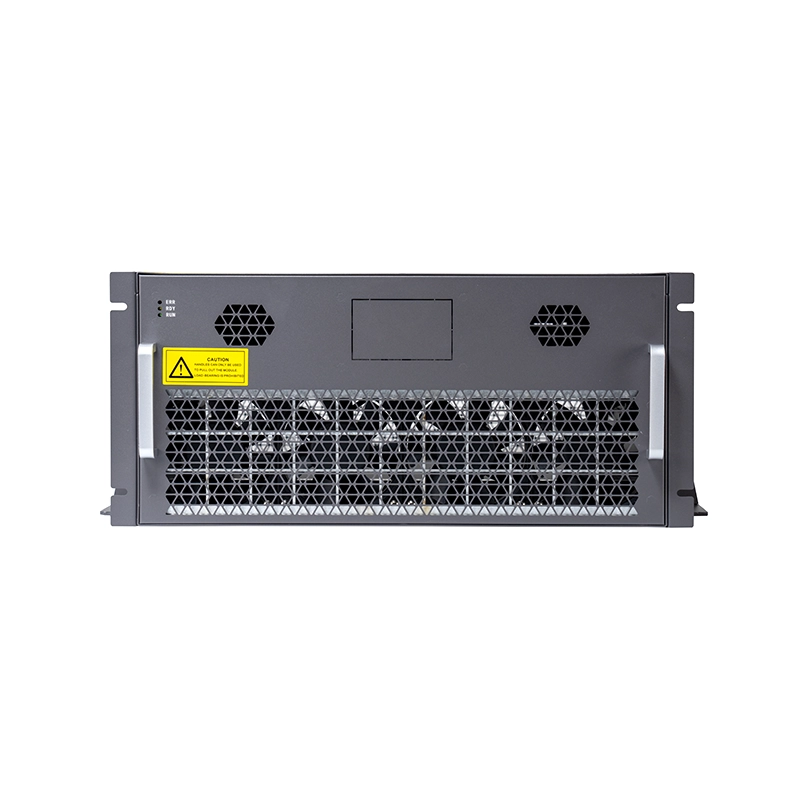

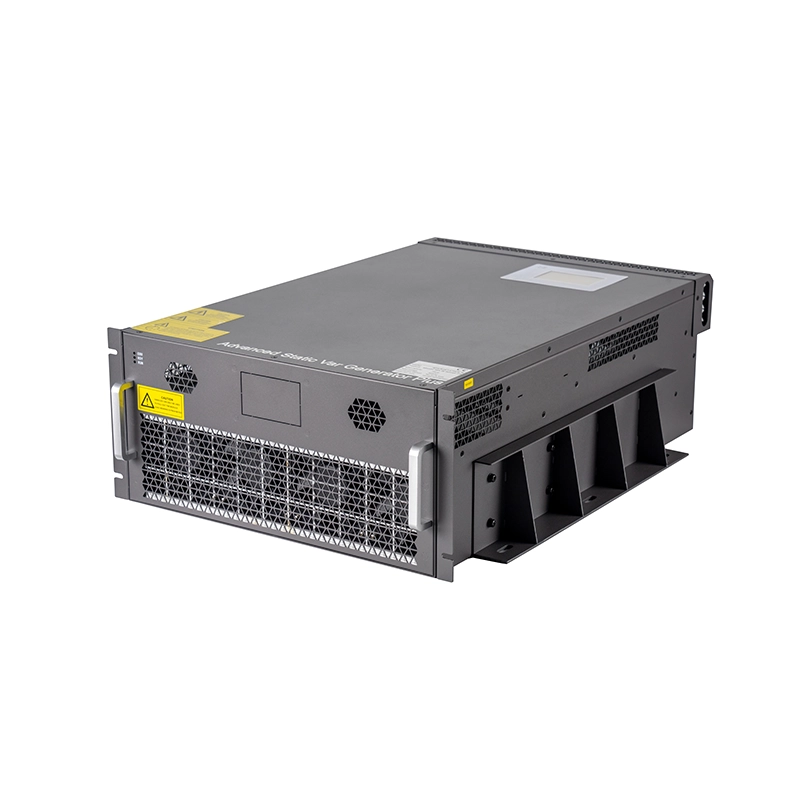

GY-ASVG-PLUS High-spec Advanced Static Var Generator
GY-ASVG-PLUS is a high-performance Advanced Static Var Generator designed for demanding power quality applications. Based on three-level topology and full-digital control technology, it provides integrated compensation for reactive power, harmonic currents and three-phase unbalance, helping industrial power systems achieve stable and efficient operation.
Featuring enhanced neutral-line filtering capability up to three times the phase-line current and Class A EMC performance, GY-ASVG-PLUS delivers excellent anti-interference capability in complex electrical environments. Its modular design supports wall-mounted and rack-mounted installation with flexible parallel expansion, making it suitable for advanced industrial power quality management applications.
•Integrated Power Quality Compensation — GY-ASVG-PLUS provides comprehensive real-time power quality improvement by combining reactive power compensation, harmonic mitigation and three-phase unbalance correction. It achieves reactive compensation accuracy ≥99%, harmonic filtering efficiency ≥95% for 2nd to 50th harmonics, and unbalance correction ≤5%.
•Enhanced Neutral-Line Current Management — Designed for demanding three-phase four-wire systems, the unit provides advanced zero-sequence current filtering capability up to three times the phase-line current, improving grid stability and protecting sensitive electrical equipment.
•High-Performance Digital Control Platform — Equipped with DSP+CPLD full-digital control technology and advanced three-level topology, GY-ASVG-PLUS delivers precise dynamic compensation with reactive response time <10ms and harmonic response time <40ms.
•Flexible Current Sampling Configuration — Supports dual external CT sampling channels with flexible detection configurations, including low-voltage side sampling, high-voltage side sampling and reactive component compensation, allowing better adaptation to different power system requirements.
•Industrial-Grade Design and Reliability — Featuring independent air duct cooling, Class A EMC performance and modular expansion capability, GY-ASVG-PLUS supports rack-mounted and wall-mounted installation with flexible parallel connection for complex industrial power quality applications.
Product Features
Overview
Working Principle of the High-configuration Model Enhanced Static Var Generator (GY-ASVG-PLUS):

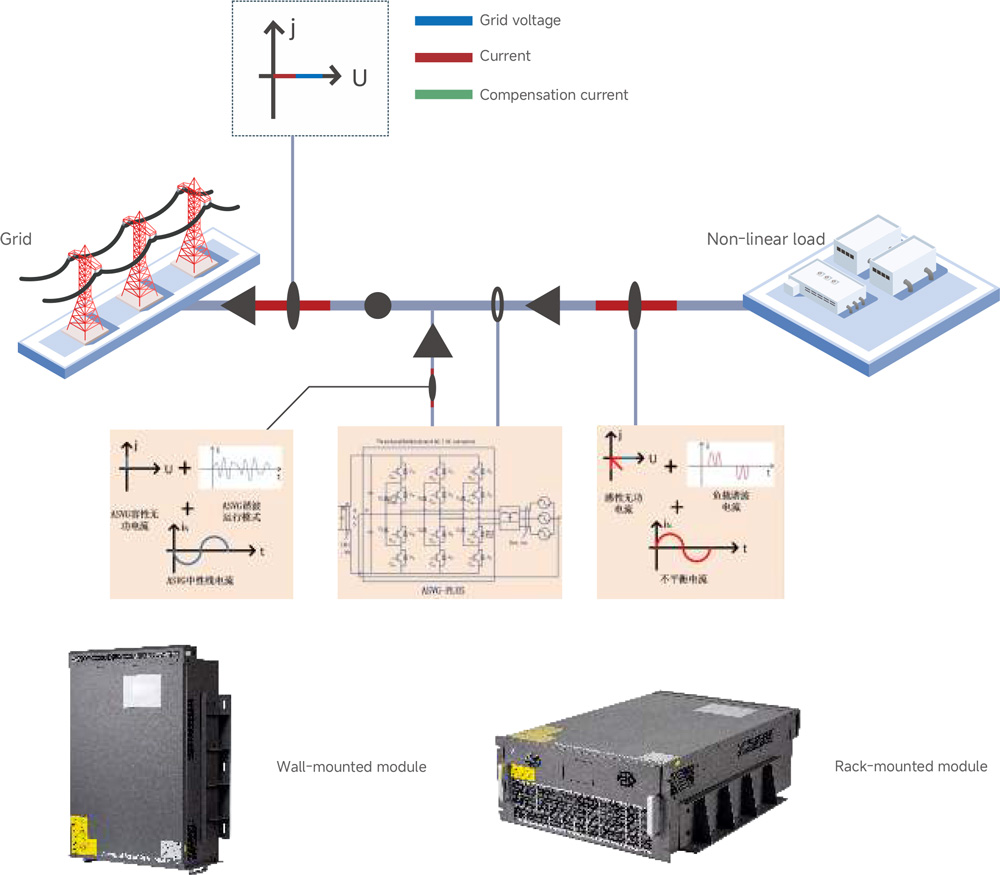

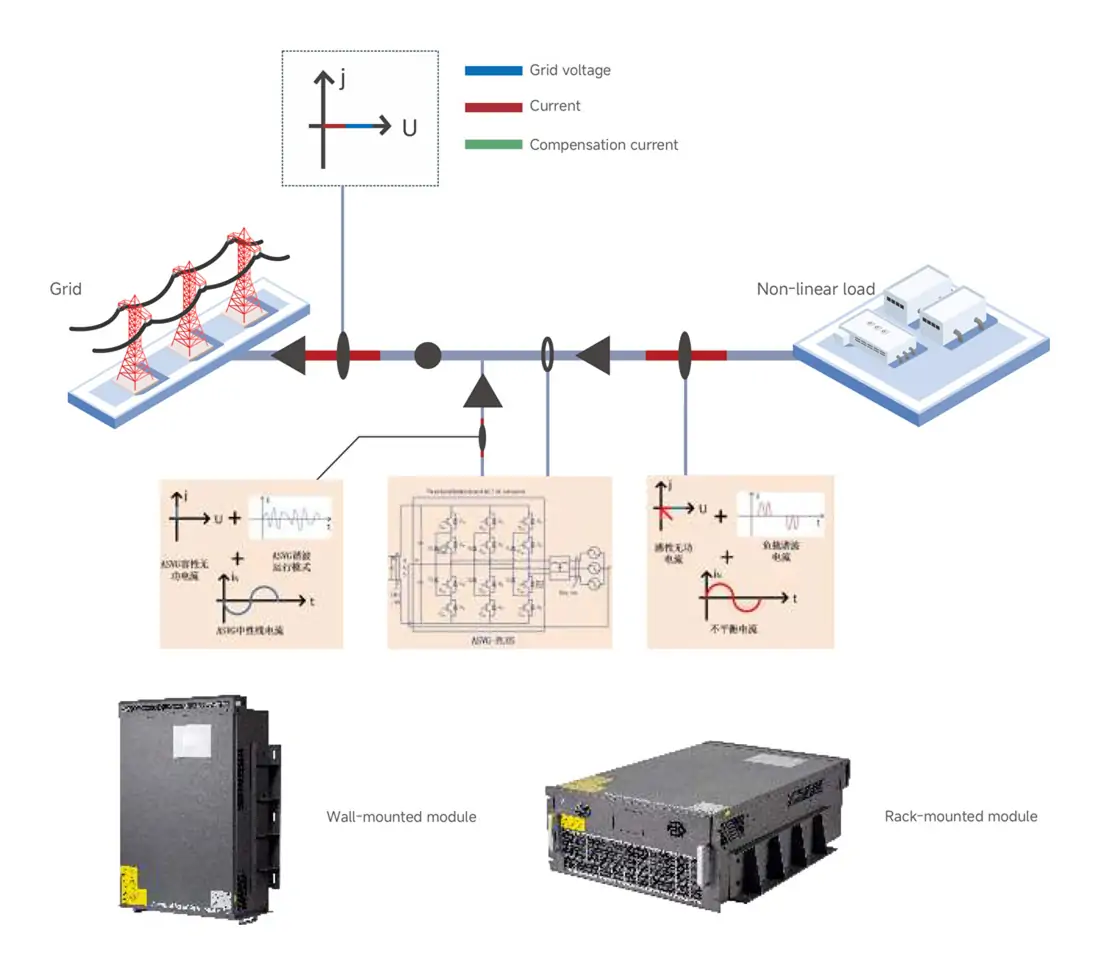

The device connects a voltage source converter (VSC) to the power grid via a filter in parallel. By detecting the load current in real time and based on advanced detection and control algorithms for reactive power, harmonics, and three-phase active power, it generates corresponding IGBT drive signals to achieve comprehensive compensation of reactive current, harmonic current, and three-phase unbalanced current. In addition, the device’s neutral line zero-sequence current filtering capability can reach three times the phase line current. It also offers better EMC electromagnetic compatibility performance and improved stability.
Performance characteristics
1.DSP+CPLD full-digital control core, three-level topology technology.
Modular design with multi-module parallel connection; small footprint, easy maintenance.
2.Independent air duct and independent board compartment design to ensure stable operation of the equipment.
3.Equipped with two external current sampling channels, supporting various compensation modes such as low-voltage side sampling with low-voltage side compensation, high-voltage side sampling with low-voltage side compensation, and reactive component compensation.
4.Supports any one, any two, or all three of reactive power compensation, harmonic compensation, and three-phase unbalance compensation as selectable options.
5.Reactive power compensation capability: compensation rate ≥99%.
6.Unbalance compensation capability: unbalance degree after compensation ≤5%.
7.Current harmonic compensation capability: compensation rate ≥95%; 2nd to 50th
8.harmonics, individual compensation rate adjustable.
9.Neutral line zero-sequence current filtering capacity is three times that of the phase line.
10.EMC (Electromagnetic Compatibility) – RE and CE meet Class A test standard
Technical Parameter

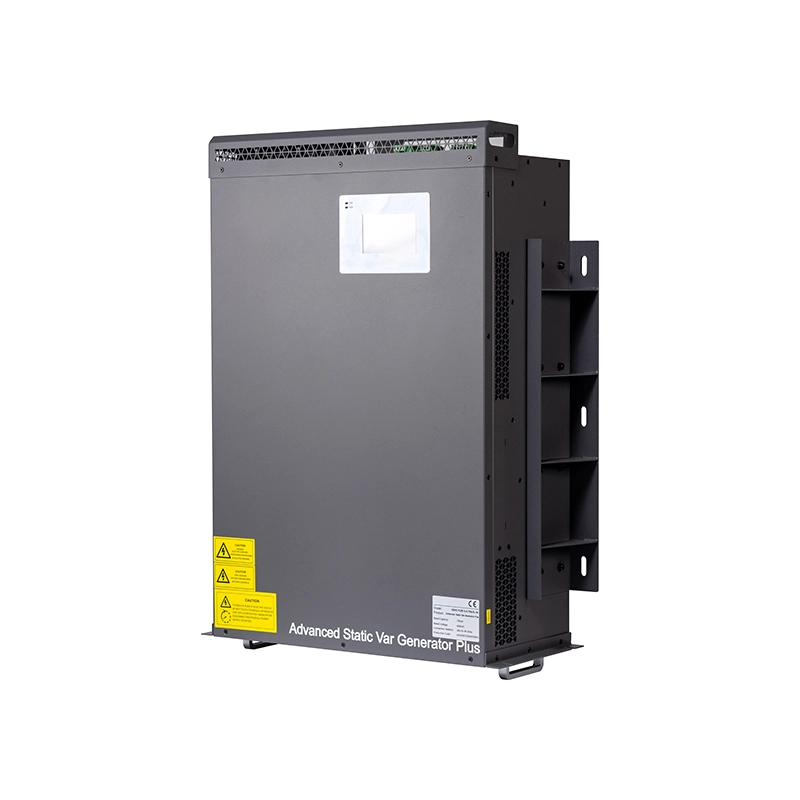

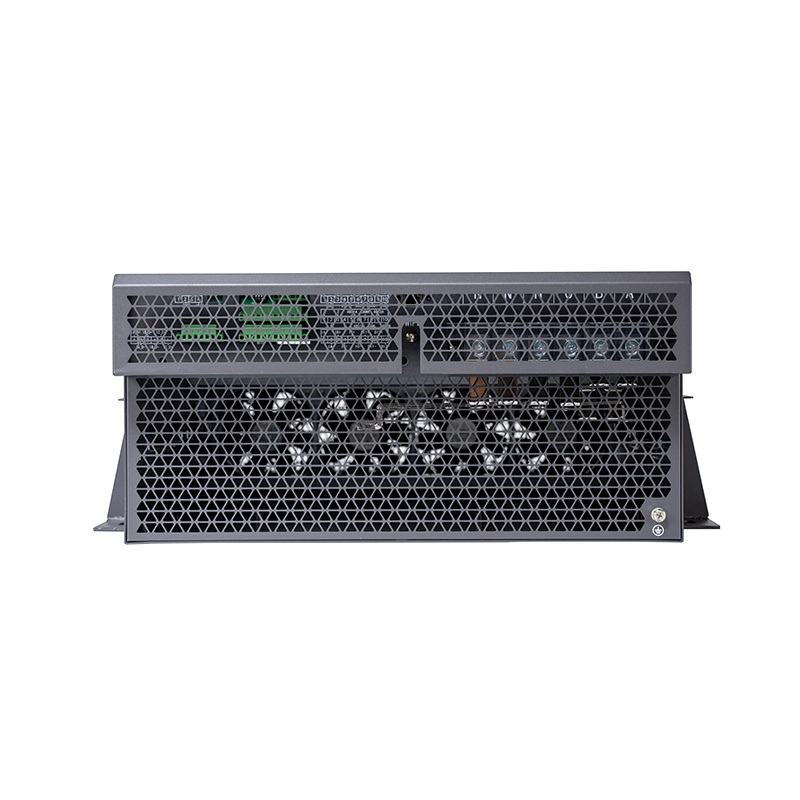

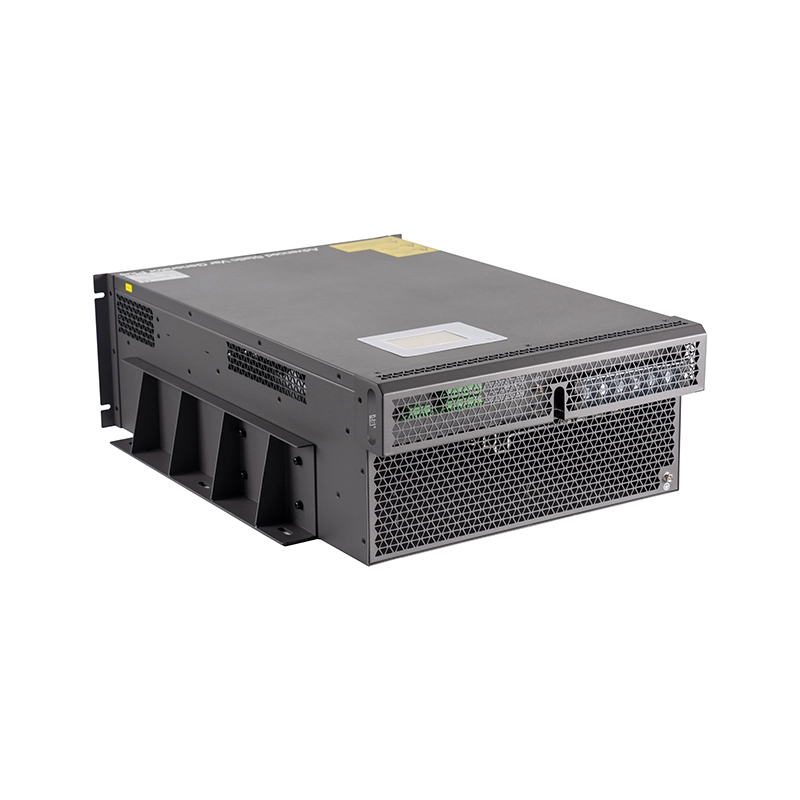

| Model | 220V | 380V |
| Altitude | <2000m; above 2000 m, derate according to GB/T 3859.2 | |
| Ambient temperature | -10 ~ +50℃ (above 40 ℃, capacity derating ≤30%) | |
| Relative humidity | ≤90% relative humidity, no condensation on the surface at a monthly minimum temperature of 25 ℃ | |
| Pollution degree | Pollution degree ≤ Class III | |
| Operating voltage | AC220V (-20%~+20%) | AC380V (-20%~+20%) |
| Operating frequency | 50Hz/60Hz (45Hz~63Hz) | |
| Rated compensation capacity | 37Kvar、50Kvar | 75Kvar、100Kvar |
| Grid configuration | Three‑phase three‑wire, Three‑phase four‑wire | |
| Number of parallel units | No restrictions | |
| Overall efficiency | ≥98% | |
| Switching frequency | 16kHz | |
| Function selection | A、B、A+B、B+A、B+C、A+C、B+C+A、A+C+B | |
| Reactive compensation rate | Reactive power compensation ≥99% | |
| Unbalance compensation capability | Unbalance degree after compensation ≤5% | |
| Current harmonic compensation capability | Current harmonic compensation ≥95% | |
| Neutral line filtering capability | Neutral line filtering capacity is 3 times that of phase filtering capacity | |
| Full response time | Reactive power <10ms, Harmonics <40ms | |
| Cooling mode | Forced air cooling | |
| Noise level | ≤65dB | |
| Communication method | 2 RS485 communication interfaces (Wi‑Fi supported) | |
| Protection functions | Overload, software/hardware overcurrent, grid over‑undervoltage, grid voltage unbalance, power supply failure, overtemperature, frequency anomaly, short‑circuit protection, resonance protection, etc. | |
| Overload capability | Rated overload 1.2 times for 60 seconds | |
| Installation method | Rack‑mount / Wall‑mount | |
| Cable entry | Rack‑mount: rear cable entry; Wall‑mount: top cable entry | |
| Protection rating | IP20 (IP54 available on request / customizable) | |
| Size (W*D*H) | 500*730*240mm | |
| Electromagnetic Compatibility | EMC‑ RE and CE meet Class A test standard | |
