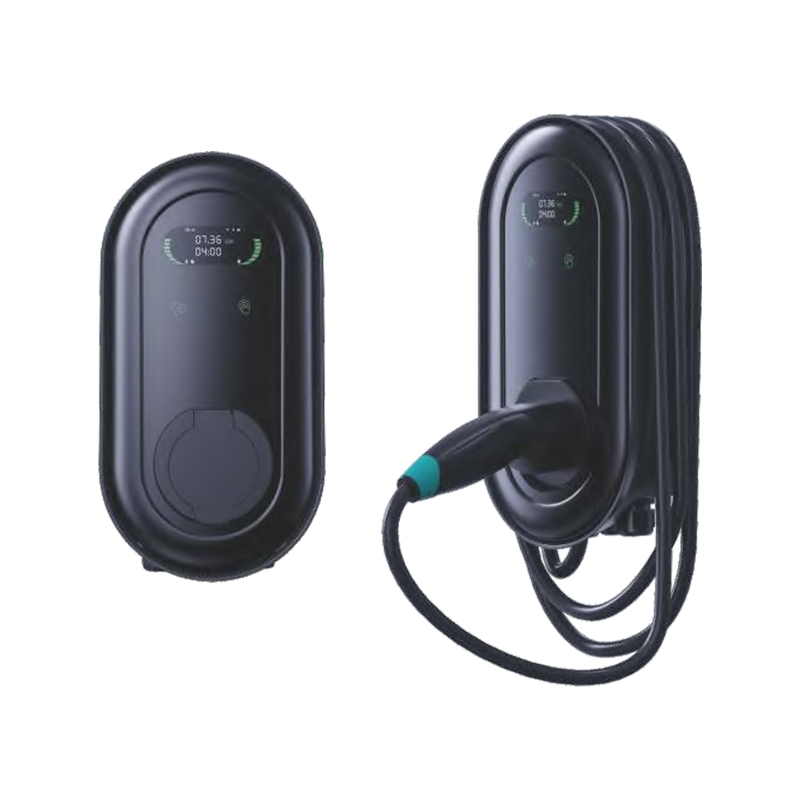

TYPE 2 AO (7kW/11kW/22kW) Smart AC Wallbox
TYPE 2 AO (7kW/11kW/22kW) Smart AC Wallbox is an intelligent EV charging solution designed for residential, commercial, and public charging applications. Available in 7.4kW, 11kW, and 22kW power options, it features a Type 2 charging cable, LCD display, and multiple smart control methods including mobile APP, RFID card, and Plug-and-charge.
With Wi-Fi, Bluetooth, 4G, and LAN communication interfaces, as well as OCPP 1.6J protocol support, the AO Smart AC Wallbox enables convenient charging management and smart platform integration. Its IP55 and IK10 protection design, combined with comprehensive safety protection functions, ensures reliable operation in various indoor and outdoor environments.
•Flexible Power Options: Supports single-phase and three-phase charging with rated power options of 7.4kW, 11kW, and 22kW to meet different EV charging requirements.
•Type 2 Charging Cable: Equipped with a 5m Type 2 charging cable (Case C, IEC 62196-2) for convenient and reliable EV charging.
•Smart Charging Control: Supports mobile APP, RFID card, and Plug-and-charge modes for flexible and convenient charging management.
•LCD Display & Smart Connectivity: Features a 3.8-inch LCD screen and supports Wi-Fi, Bluetooth, 4G, and LAN communication interfaces.
•OCPP 1.6J Compatible: Supports OCPP 1.6J protocol for integration with smart charging platforms and remote operation management.
•Enhanced Safety Protection: Built-in over-current, over/under voltage, over-temperature, leakage, and PE ground protection with •Type A RCD + DC 6mA protection.
•Durable Protection Design: Designed with IP55 and IK10 protection ratings, suitable for indoor and outdoor installation environments.
•Flexible Installation Options: Supports wall-mounted and optional pole-mounted installation for residential, commercial, and public charging applications.
Product Features
Intelligent Type 2 AC Wallbox for Efficient and Connected EV Charging
The TYPE 2 AO Smart AC Wallbox is an advanced AC EV charging solution designed for residential, commercial, and public charging applications. Available in 7.4kW, 11kW, and 22kW power options, it provides flexible charging solutions for different electric vehicle requirements.
Featuring a built-in Type 2 charging cable compliant with IEC 62196-2 standards, a 3.8-inch LCD display, and multiple smart charging control methods including mobile APP, RFID card, and Plug-and-charge, this Smart AC EV Charger delivers a convenient and user-friendly charging experience.
With Wi-Fi, Bluetooth, 4G, and LAN connectivity, as well as OCPP 1.6J protocol compatibility, the AO Smart AC Wallbox enables seamless integration with intelligent charging platforms, helping operators achieve efficient charging management and remote monitoring.
Technical Specification
| AC Supply | EAW-A007xxx | 1P + N + PE |
| EAW-A011xxx, EAW-A022xxx | 3P + N + PE | |
| Rated Voltage & Frequency | EAW-A007xxx | AC 230V, 50/60Hz |
| EAW-A011xxx, EAW-A022xxx | AC 400V, 50/60Hz | |
| Rated Power | EAW-A007xxx | 7.4kW |
| EAW-A011xxx | 11kW | |
| EAW-A022xxx | 22kW | |
| Rated Current | EAW-A007xxx, EAW-A022xxx | 32A |
| EAW-A011xxx | 16A | |
| Connector Type | EAW-A0xxTxx: Type 2 cable (5m), Case C (IEC 62196-2) | |
| Display Screen | EAW-A0xxx1x: 3.8-inch LCD screen | |
| Charging Control | Mobile App, RFID card, Plug-and-charge | |
| Communication | Wi-Fi + Bluetooth, 4G, LAN (Ethernet) | |
| Protocol | OCPP 1.6J | |
| RCD Protection | Type A (30mA) + DC 6mA (TUV certified) | |
| Enclosure Rating | IP55, IK10 | |
| Operating Altitude | ≤2000m | |
| Ambient Humidity | ≤95% RH (non-condensing) | |
| Vibration | 0.5G (no severe impact) | |
| Installation | Indoor/outdoor, well-ventilated area | |
| Mounting | Wall or pole mounted (pole optional) | |
| Dimensions (H x W x D) | 388.45mm x 202.45mm x 107.26mm | |
| Net Weight | EAW-A007Txx | 4.0 kg |
| EAW-A011Txx | 3.8 kg | |
| EAW-A022Txx | 5.0 kg | |
| Safety Protections | Over-current, over/under voltage, over-temperature, Leakage, PE ground protection etc. |
